dreadbox

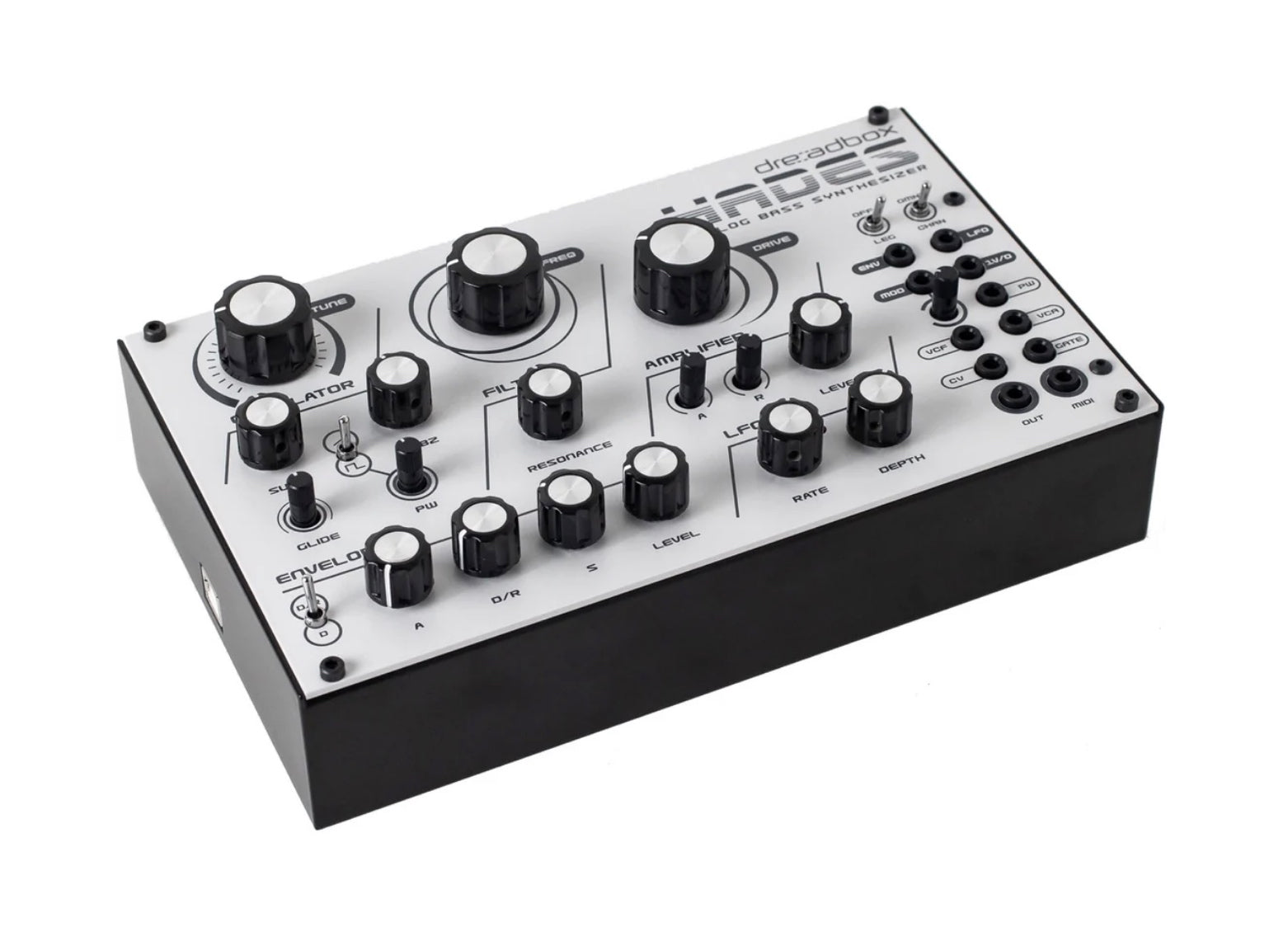

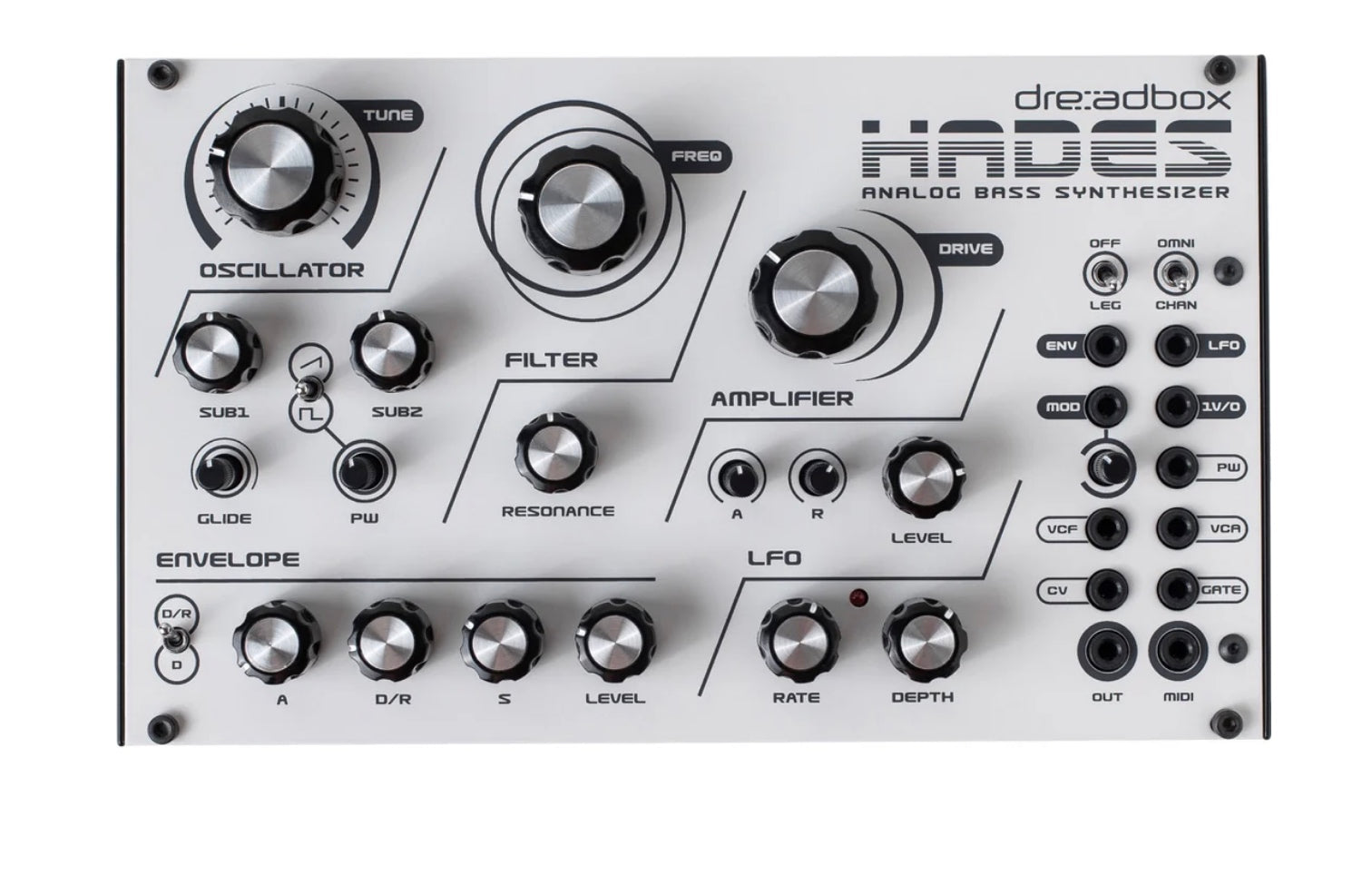

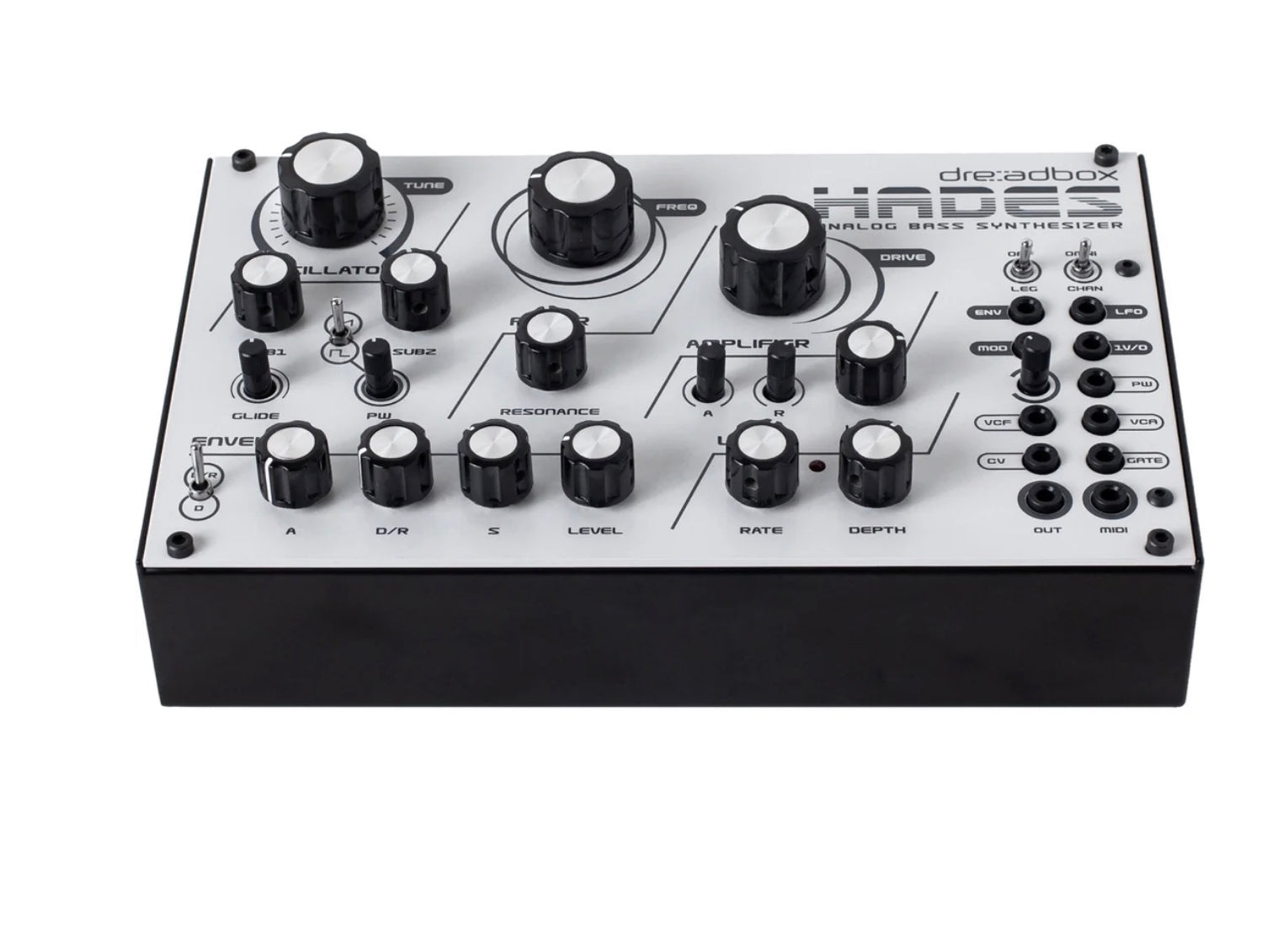

Hades

  • Sale
  • Regular price $299.00
  • 2 available


Another analog Gem from dreadbox! Pure analog sound and only $299!



  • Full Analog Circuit only with Through Hole Components
  • 1x VCO with 2 suboctaves (3 voices in total)
  • Pulse width and Glide controls
  • 3-pole 18dB/oct Resonating Low Pass Filter
  • OTA Distortion Circuit for extreme sounds
  • OTA based VCA
  • 2 envelope Generators
    – Attack, Decay/Release, Sustain (extra snappy and patchable)
    – Attack, Release (VCA hardwired)
  • Triangle Wave LFO
  • 8 point patch matrix eurorack compatible
  • 5 MIDI Octaves from C0 up to C5 or unlimited via CV/Gate



    • MIDI interface: Midi in DIN socket, Pitch note/gate on-off, retrigger function, Mod wheel (hardwired on VCF), Pitch wheel, MIDI Channel select 1-7 or Omni (DIP switch)
    • MONO AUDIO OUT (1/4″ TS-Unbalanced), sends up to 10Vpp o
    • Patches: 3.5mm mono
    • Gate in: activation at 0.9V in a low gain up to 5V for max gain
    • Gate out: 0-5V
    • 1V/oct : sends the MIDI to CV out (not the Gate)
    • CV IN: works at 1V/oct and can accept from +/-12V
    • Envelope out: 0-6.6V depending on the depth setting
    • LFO out: +/-5V
    • Weight: 0,9 kgr
    • 225 x 160 x 75 mm
