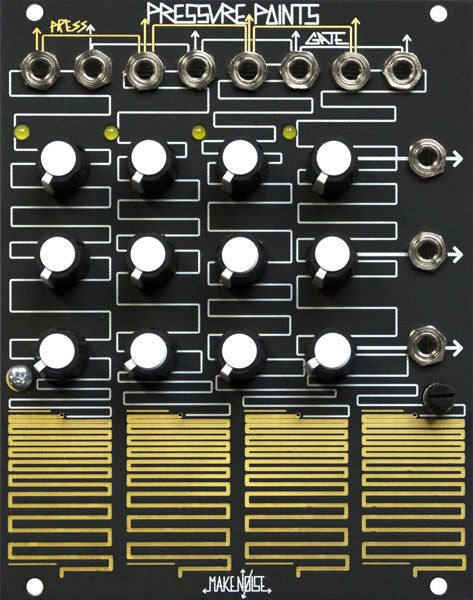

The Pressure Points music synthesizer module is a controller, an analog sequencer that is played by hand. Touching the gold plated copper wires (aka Touch Plates), you become part of the circuit, generating a gate signal (Gate OUT), a control signal proportional to the amount of pressure applied (Press OUT) and the 3 Tuned Voltages for the activated Stage.
features
-
The Gate signals may be used to turn portions of a patch ON/ OFF, generate Timing Events within a patch or to Trigger a Function Generator such as MATHS
-
The PRESSure signals may be used to add expression to a patch by varying Pitch or Timbre in real-time, based upon the artist's input
-
The Tuned Voltages may be used to play the Pitch of a sound in a traditional melodic fashion, Program Chords or Timbral shifts (aka Presets)
-
Up to 4 may be CHAINed together (using CHAIN Cable), to create controllers of varying size and complexity
-
All outputs are capable of driving a passive 4 way mult without loading effects (no buffered mult needed)
-
Expansion port allows for sequential control via the BRAINS expander module
-
Pairs well with MATHS
-
specifications
- Width: 20hp
- Max Depth
(incl. power cable): 32mm - Power:
20mA@ +12V
0mA @ -12V - manual:
- PressurePointsManual.pdf
- pressurepointsmanual-japanese.pdf
-
Requires Make Noise approved power solution
- MSRP: $215
