Elektron

Analog 4MKII Black

  • Sale
  • Regular price $1,499.00
  • 1 available


Open Box immaculate $1499

IN BLACK!!


What does the MKII version bring?

Analog Four MKII is the new benchmark for analog tabletop synthesizers. Tweaked circuitry delivering deeper bass than ever, new powerful sound control possibilities, dedicated outputs for each voice. Not to mention the ultra durable buttons, the big OLED screen and the premium design. No stone has been left unturned.

This is Analog Four MKII. An analog synthesizer with unmatched sound and flexibility.

Analog Four MKII features several upgrades compared to the MKI version:

  • Reworked analog circuitry delivering very deep and defined bass
  • Enhanced analog overdrive for more bite and growl
  • Crisp, large OLED screen providing optimal feedback in dimly lit environments
  • Ultra durable back-lit buttons. Rated for 50 million presses
  • Precise, hi-res encoders
  • Quick performance controls
  • Increased amount of dedicated buttons enabling quicker workflow
  • Stereo audio outputs for each voice
  • Expression/CV inputs for external control of Analog Four MKII parameters
  • Overbridge with higher bandwidth
  • Premium cast aluminium enclosure

4 voice analog
tabletop synthesizer

Analog bliss

Organic, warm, chaotic, exact, and everything in between. Moulding your own unique analog sounds is simple. Program them with precision, or feel free to design as you go. The sonic range is so vast entire tracks can be created from scratch.

From sounds to songs

Four synth tracks and an intuitive step sequencer enable you to easily create and layer melodies. Then play back your composition and immediately reshape it. Change notes, alter sounds, add effects. Something beautifully unique will emerge every single time.

Modular control

Not only a splendid synthesizer, the Analog Four MKII can also make other gear sing. Thanks to the CV/Gate and DIN sync outputs, external analog gear can be controlled in great detail. Make any modular or vintage synthesizer rig come truly alive.

 Analog Four MKII specifications


Synth voice features (×4)
  • Fully analog signal path
  • 2 × analog oscillators
  • Variable waveshape on all waveforms
  • Oscillator AM and Sync modes
  • 2 × sub-oscillators
  • 1 × noise generator
  • 1 × 4-pole analog lowpass ladder filter
  • 1 × 2-pole analog multi-mode filter
  • 1 × analog overdrive circuit
  • Filter feedback
  • 2 × assignable LFOs
  • 1 × dedicated vibrato LFO
  • 2 × dedicated waveshape LFOs
  • 1 × amp envelope
  • 2 × assignable envelopes
  • 2 × dedicated LFO fade envelopes
  • 1 × dedicated noise fade envelope
  • 1 × dedicated vibrato envelope
  • 1 × dedicated autobend envelope
  • 3 × individual effect sends
  • Up to 4 notes of polyphony
  • Up to 4 part multitimbrality
  • Up to 4 note unison playback
Storage
  • 128 Projects
  • 4096 Sounds (+Drive Sound Library)
  • 128 Sounds per Project (Project Sound Pool)
  • 128 Kits per Project
  • 128 Patterns per Project
  • 16 Songs per Project
Sequencer
  • 4 synth tracks
  • 1 FX track
  • 1 CV/Gate track
  • Up to 64 steps per pattern
  • Individual track lengths
  • 6 × arpeggiators
  • Parameter locks
  • Instant Pattern, Kit and Sound reload
  • Live friendly Performance mode
  • Swing, slide, accent
  • Track transpose
  • Micro timing
  • Sound-per-step change
  • Full real-time control
Send effects
  • Wideshift Chorus
  • Saturator Delay
  • Supervoid Reverb

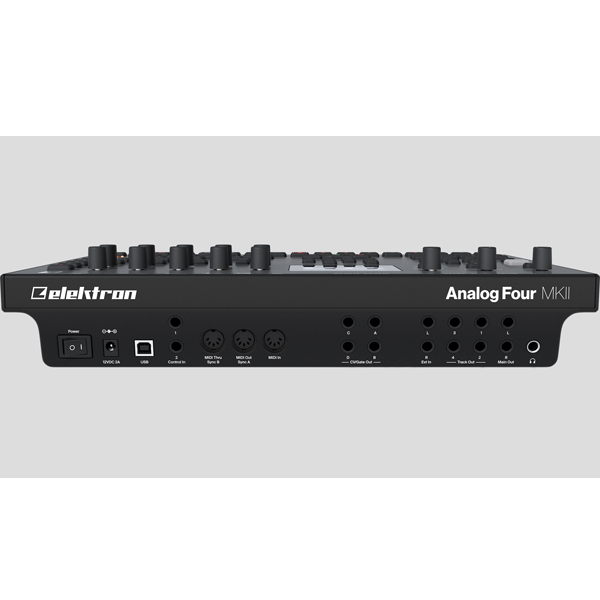

Hardware
  • 128 × 64 pixel OLED screen
  • MIDI In/Out/Thru with DIN Sync out
  • 2 × 1/4” impedance balanced main audio out jacks
  • 4 × 1/4” separate stereo voice output jacks
  • 2 × 1/4” audio in jacks
  • 1 × 1/4” stereo headphone jack
  • 4 × 1/4” CV/Gate outputs
  • 2 × 1/4” CV/Expression inputs
  • 48 kHz, 24-bit D/A and A/D converters
  • Flash-EEPROM upgradable OS
  • Electrically isolated USB 2.0 port
Balanced audio outputs
  • Headphones out level: +19 dBu (55 Ω)
  • Main outputs level: +19 dBu
  • Output impedance: 440 Ω unbalanced
Unbalanced audio inputs
  • Input level: +19 dBu maximum
  • Audio input impedance: 9 kΩ
CV/Expression inputs
  • Input voltage on tip: -5 V–+5 V. Supplies +5 V on ring
  • Accepts CV, Expression pedals
CV outputs
  • Voltage range: -10 V–+10 V.
  • Digital S/N ratio: 102 dBFS (20–20.000 Hz)
Electrical specifications
  • Unit power consumption: 15 W typical, 20 W
  • maximum.
  • Recommended power supply: 12 V DC, 2 A
Physical specifications
  • Aluminum enclosure
  • Dimensions: W385 × D225 × H82 mm (15.2 × 8.85 ×  3.3″) including knobs, jacks and feet
  • Weight: approximately 2.4 kg (5.3 lbs)
Miscellaneous
  • 3 year Elektron warranty
Included in the box
  • Overbridge Basic (coming soon)
  • Power Supply PSU-3b
  • Elektron USB cable
  • Quick Guide

Overbridge for Analog Four MKII


Overbridge is a software suite from Elektron, offering powerful tools when using Analog Four MKII together with computers. It comes in two variants: Basic and Premium.

Overbridge for Analog Four MKII will become available later this year.

Overbridge Premium
  • Fully integrate Analog Four MKII with DAW environments
  • Use Analog Four MKII as a 2 in/2 out sound card (CoreAudio/ASIO/WDM)
  • Control Analog Four MKII with a dedicated VST/AU plugin interface
  • Stream all 4 internal voices, external inputs, and main bus to separate DAW tracks (24 bit/48 kHz)
  • Recall all Analog Four MKII settings when loading a DAW project
Overbridge Basic
  • MIDI over USB
  • Analog Four MKII sequencer/DAW sync
  • Computer screen visualization of Analog Four MKII parameters
  • Audio streaming of main bus over USB (time limited sessions)
