Enzo

  • Sale
  • Regular price $299.00


Enzo is a multi-voice synthesizer that will track your guitar for tight monosynth leads, complex chord polyphony, or multi-note sequenced arpeggiation. All without any special pickup installation. Just put it on your board and discover your own reality. The Enzo isn’t limited to guitar; use it on any instrument whether drum machine, vocals or other synths. Completely transform your input signal and synthesize. Use the full synth palette of multimode analog style synth filters, ring modulation, envelopes and much much more to drive punchy, thick synth textures. Or, explore an altered state of your pure instrument signal by transforming it with pitch, time and modulation effects. Plug in to a revelation generator.

Multi-Voice Instrument Synthesizer

  • Colossal Multi-Voice Dual Oscillator Synth architecture with selectable waveforms
  • Three Synth modes: Poly Synth, Mono Synth, and Arpeggiated Synth
  • Two Distinct Tunable Envelope Types: Triggered and Envelope Follower
  • Tunable Portamento Time for smooth transitions between synth notes and pitch shifts
  • Sustain control for extending your volume envelope all the way to endless synth hold
  • Two Tap Delay with Time, Feedback, Modulation, and special two stage level control (530 mS max delay time)
  • Adjustable Compressor with Threshold and Mix for your input signal (Dry mode)
  • Custom 6 mode filter with frequency, bandwidth (resonance), and envelope
  • Wide ranging Ring Modulation with ability to assign envelope control
  • Digitally controlled Analog mix control

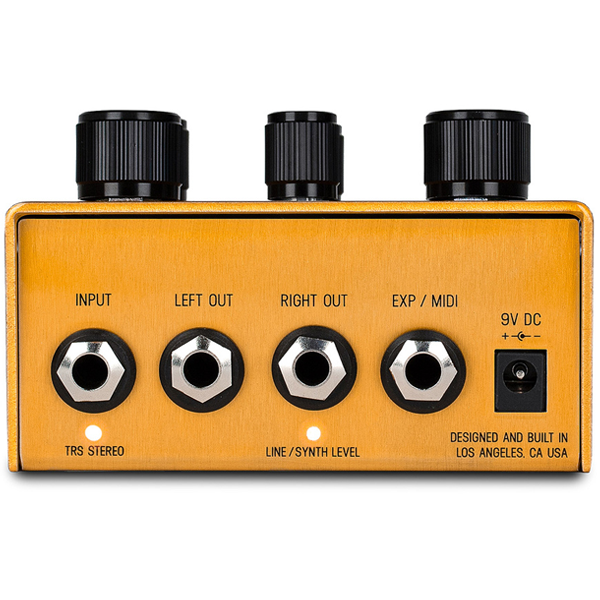

  • Stereo input and output
  • Switchable input / output headroom level for Guitar or Synth / Line level
  • Expression pedal control over all parameters simultaneously
  • Presets available via external 4-Preset switch or MIDI
  • MIDI in/out over TRS via the EXP jack
  • External Tap Tempo over TRS
  • MIDI beat clock synchronization
  • Premium analog signal path and 24-bit AD/DA w/32 bit floating point DSP
  • Premium Analog Devices JFET input section
  • Color – translucent coat of vibrant gold over brushed aluminum
  • Designed and built in Los Angeles, California U.S.A

SPECS

    • Premium quality 24 bit A/D and D/A
    • 32 Bit floating point DSP hardware
    • Premium low noise Analog signal path throughout
    • Digitally controlled Analog Dry path for wet/dry mix
    • Analog Devices JFET input circuitry
    • Selectable True Bypass (Relay) or Analog Buffered Bypass
    • Durable translucent coat of vibrant gold over brushed aluminum
    • Current draw < 150 mA
    • Dimensions – 4.25″ wide, 4.5″ long, 2″ tall
  • Sold Separately. Requires Standard 9V center negative pedal power supply 500mA to properly power any one of your Meris pedals. Sold Separately.

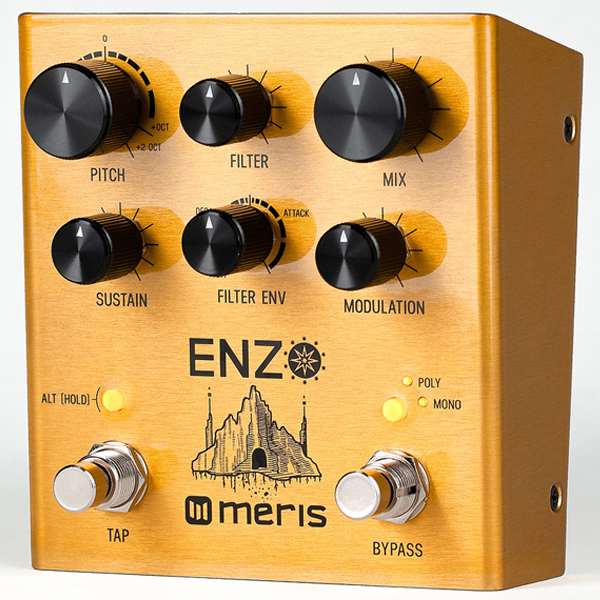

CONTROLS

Pitch


Changes the pitch of the Synth or Dry signal in half step increments
Alt Function: Portamento
Smoothly glide from one Synth note to another (Bends the pitch using the filter envelope as a modifier in Dry Mode)

Filter


Changes the cutoff frequency of the filter
Alt Function: Filter Type
Select between 6 filter types (from Min to Max) :

1. Ladder Lowpass

2. Ladder Shelving Bandpass

3. Ladder Highpass

4. State Variable Lowpass

5. State Variable Bandpass

6. State Variable Highpass


Mix


Adjusts the balance between Dry and Wet signals
Alt Function: Delay Level
Sets the level of a single delay tap from Min to Mid. After the Midpoint, this control blends in a second stereo tap.



Sustain


Increases the sustain of Synth notes (Compresses the input in Dry Mode)
Alt Function: Ring Modulation
Changes the frequency of a classic ring modulator. The filter envelope as a modifier



Filter Envelope


Sets attack and decay rates for the Triggered Envelope; sets the direction and sensitivity for the Envelope Follower
Alt Function: Filter Bandwidth (Resonance)
Changes the filter from a wide bandwidth for gentle filtering to a narrow bandwidth for peaky filtering




Modulation


Detunes the oscillators of each Synth voice (Sets the amount of delay modulation in Dry mode)
Alt Function: Delay Feedback
Sets the repeats for the delay line

Hold to access Alt Functions


Alt Functions are only accessible when this button is held

Press to Select Synth Mode


(Press to Select Synth Mode)
Poly:  Multi-Voice Synthesizer with polyphonic chord tracking
Mono:  Single Voice Dual Osc Synth w/monophonic tracking
Arp:  Turns your chords into sequenced patterns linked to the tap tempo
Dry:  Disables the Synth. Allows the filter, delay and pitch shift to be applied to the input signal

Tap


Sets the time for the delay (530 mS max delay time) and arpeggiated Synth
Alt Function: Envelope Type
Changes the Filter Envelope from Triggered Envelope to Envelope Follower
Hold Tap: Momentarily turns Delay Feedback to max

Bypass


Disables processing and passes the input through to the output
Alt Function: Synth Waveshape

Changes the Synth waveshape from Sawtooth to Square
