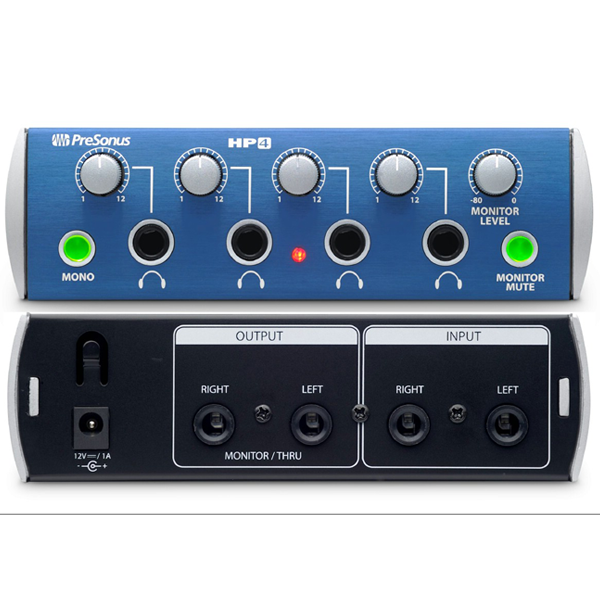

FEATURES
Input/Output
4 screaming-loud (150 mW per channel) stereo ¼” headphone outputs (front panel)
2 balanced ¼” line outputs (monitor outputs)
2 balanced ¼” line inputs
Meters, Controls, and Features
Headphone level control for each channel
Mono summing switch for each channel
Monitor level control
Monitor mute switch
Daisy-chain multiple units via monitor outputs
Physical
Compact 1/3U rack-mount chassis
Sealed, detented, metal rotary controls
External 16 VAC power supply
SPECS
TECHNICAL SPECSInputs |
|
| Connector Type | ¼” TRS, balanced |
| THD+N | 0.0025%, 1 kHz, unity gain |
| Max Input Level | +18 dBu, <0.5% THD+N, unity gain |
| Input Impedance | 10 kΩ |
| Frequency Response | 20 Hz - 20 kHz, ±0.5dB |
Monitor Outputs |
|
| Connector Type | ¼” TRS, asymmetrical, impedance-balanced |
| THD+N | 0.0025%, 1 kHz, unity gain |
| Max Output Level | +18 dBu, <0.5% THD+N |
| Output Impedance | 51Ω |
| Frequency Response | 20 Hz - 20 kHz, ±0.5dB |
Headphone Outputs |
|
| Connector Type | ¼” TRS, stereo |
| Max Output Power | 130 mW/Ch., <0.5% THD+N, 60Ω load |
| Frequency Response | 20 Hz - 20 kHz, ±0.5 dB, 60Ω load |
| Headphone Impedance Working Range | 32Ω - 600Ω |
Power |
|
| External Adapter Type | +12 VDC, 1000 mA, center pin positive |
|
||||||||||||
