Listen Four

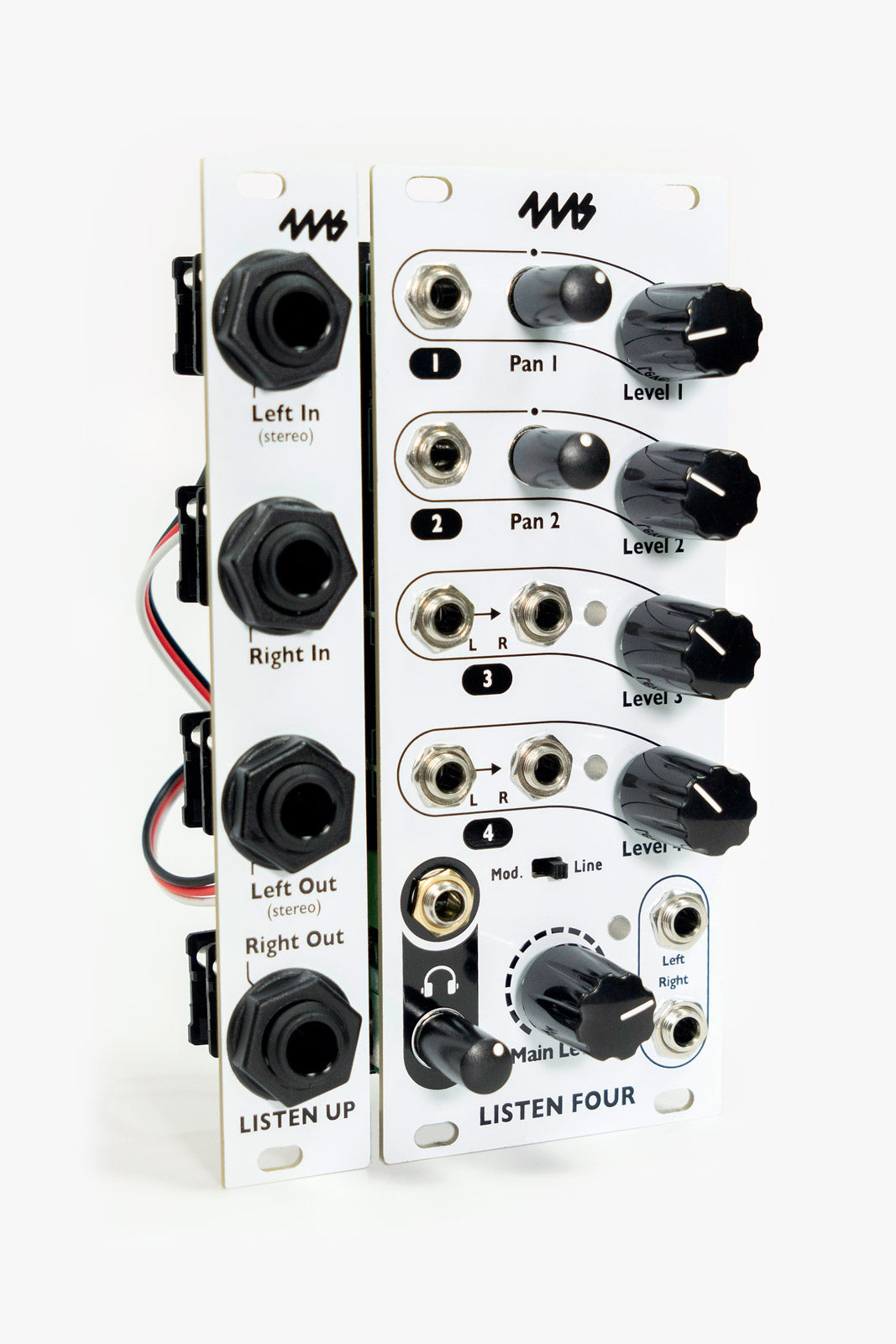

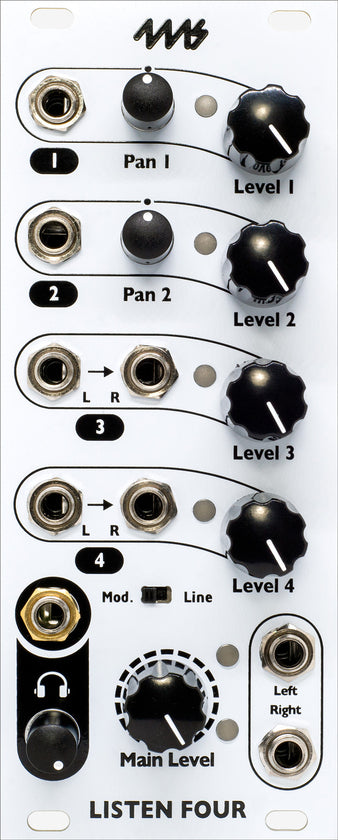

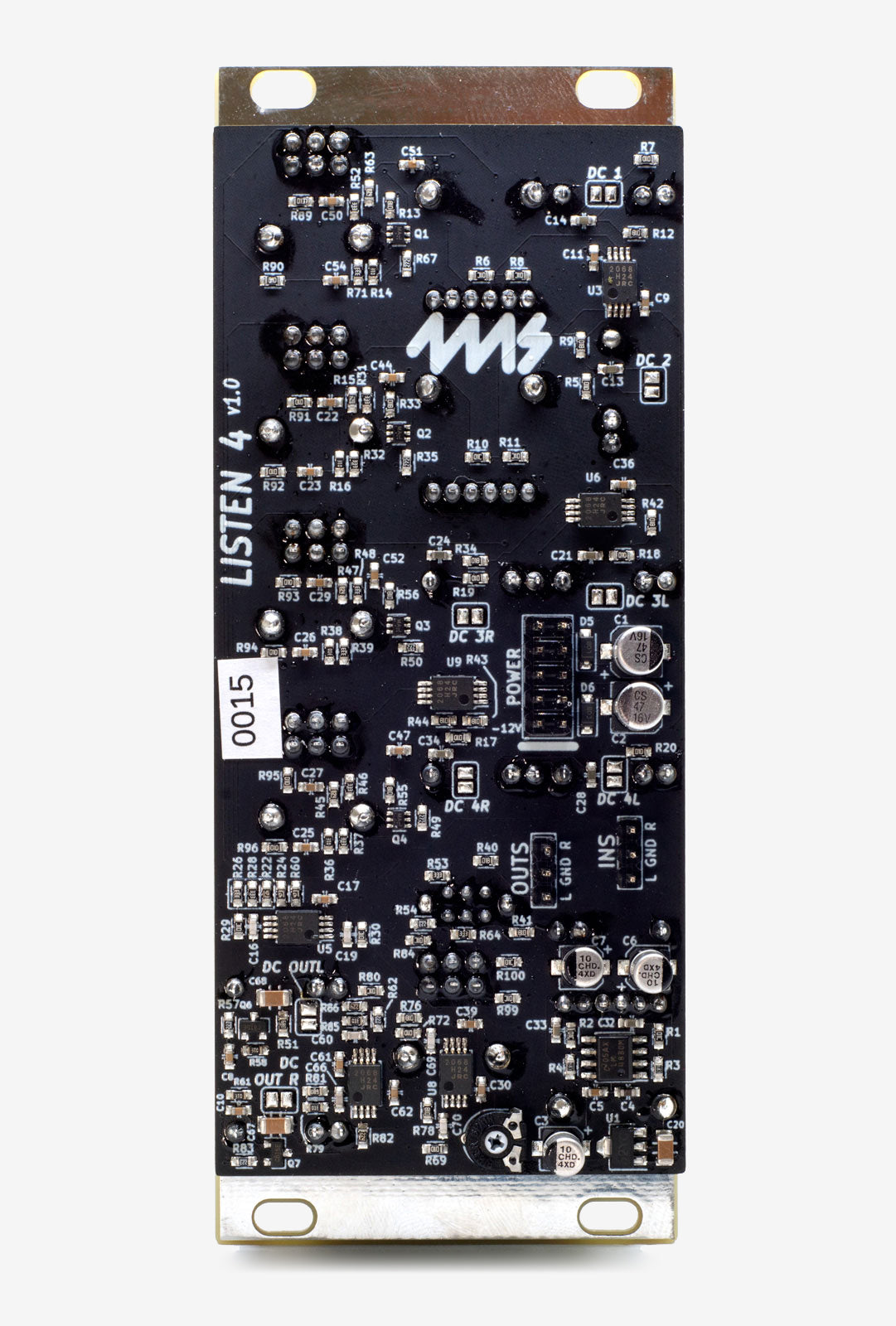

The Listen Four is a four channel stereo mixer with line, modular, and headphone outputs. Two mono channels with Pan knobs and two stereo channels with dual inputs provide optimal compatibility with both stereo and mono signals. The Listen Four can be daisy-chained to other Listen modules to create a larger mixer with sub-mix outputs.

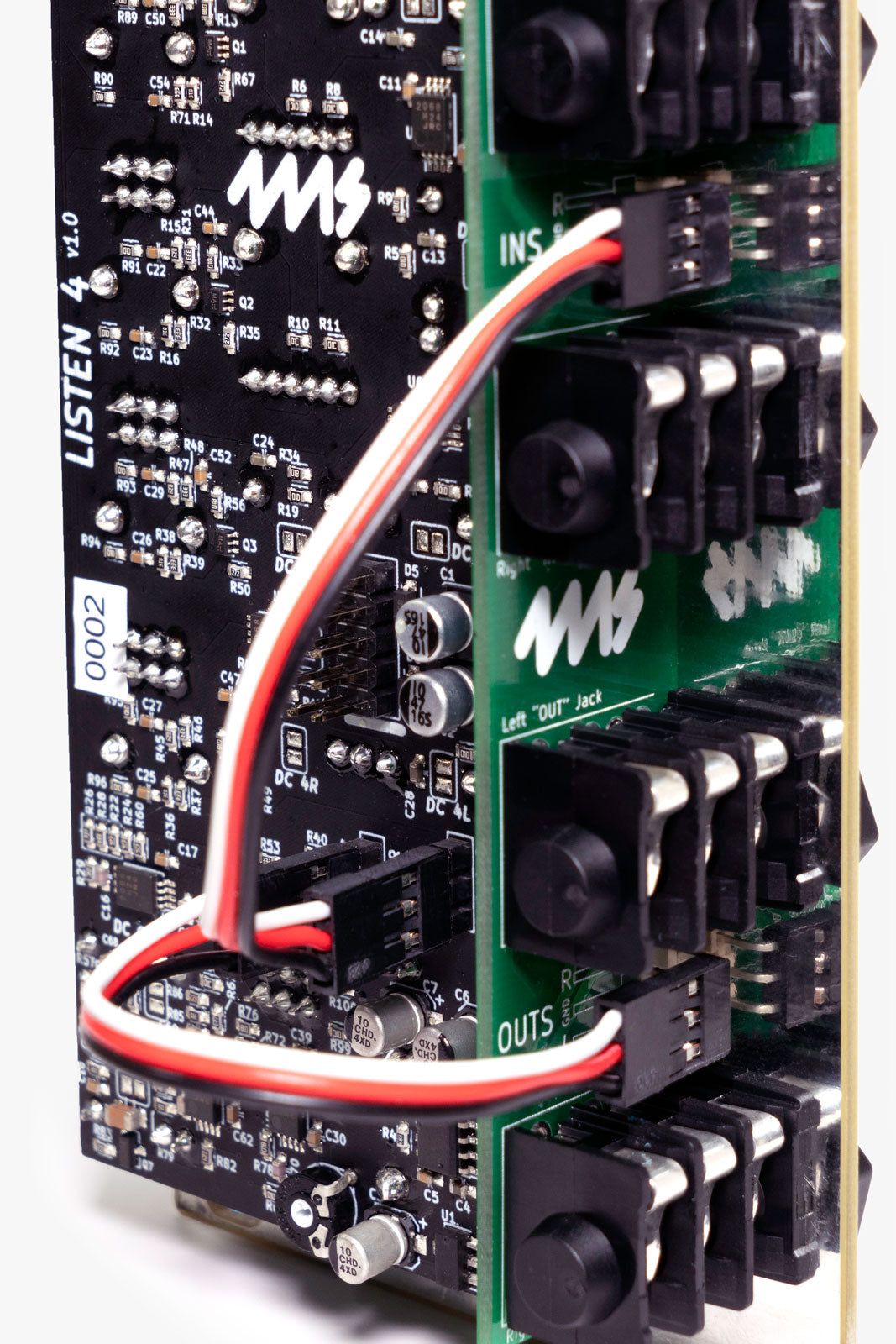

Connect your Listen Four to other Listen modules or the WAV Recorder using the Audio jumper cable.

• Listen Four User Manual v1.0

Electrical and Mechanical Specifications

• Module size:
  • 10 HP Eurorack format module

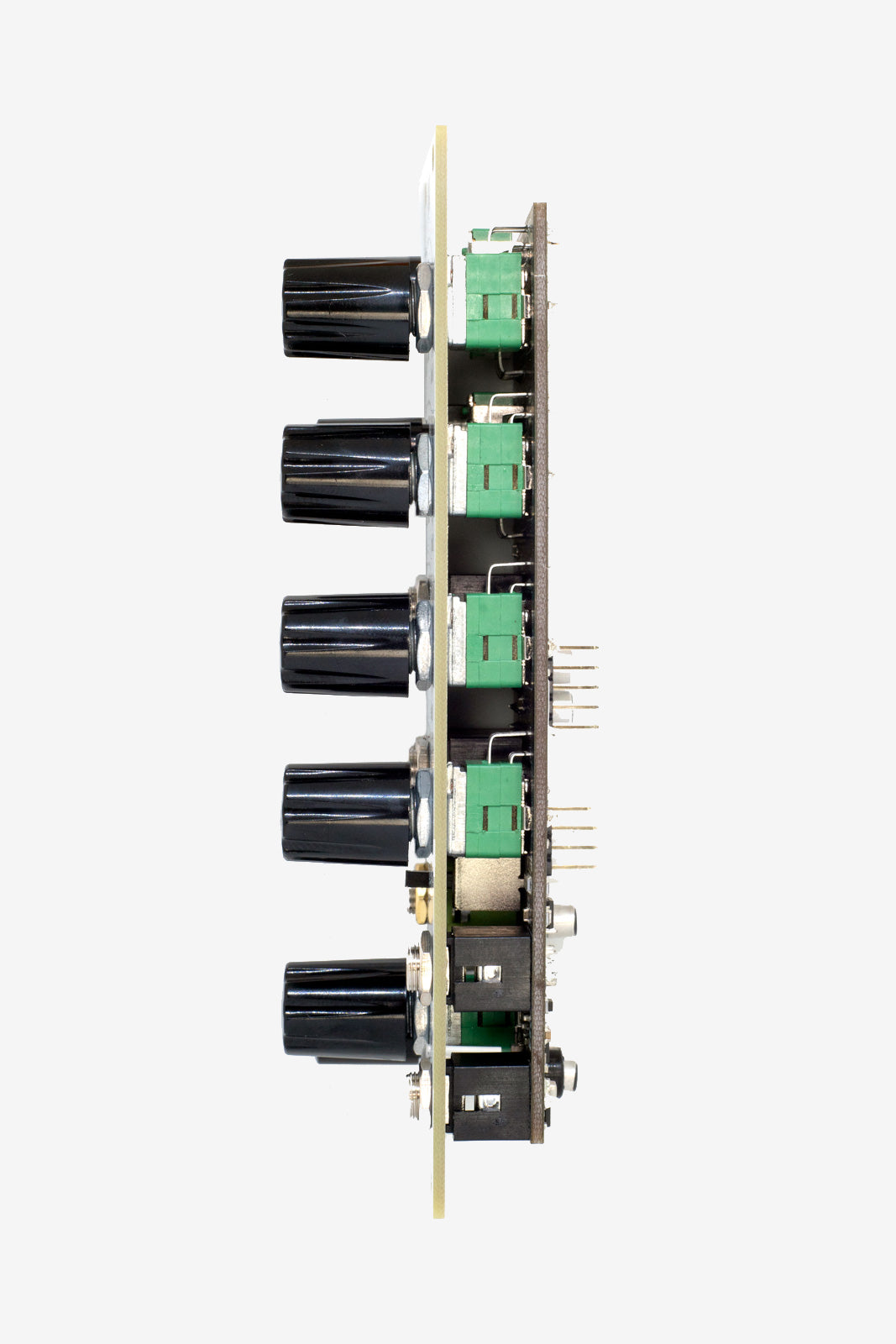

  • 0.98" (25mm) maximum depth with power cable
• Power consumption:
  • Maximum values without using headphones jack: Main outputs shorted to ground, headphones jack not used, maximum signal levels on all channels
    • +12V: 70mA
    • -12V: 62mA
  • Maximum values in worst-case conditions: All outputs including headphone jack shorted to ground, maximum signal levels on all channels
    • +12V: 200mA
    • -12V: 62mA
• Main outputs
  • Output type: zero-impedance, compensated for electrolytic capacitor distortion
  • Frequency Response: +/-0.2dB max deviation, 10Hz - 20kHz
  • Maximum output level: 22.2V peak-to-peak
  • Maximum gain of channels 1 and 2: 8.0dB (hard-panned), 3.1dB (center-panned)
  • Maximum gain of channels 3 and 4, and INS header: 4.9dB
  • Channel bleed-through (Main Level attenuation):
    • Test conditions: Test signal input into each channel with Level knob at 100%. Frequencies from 20Hz to 20kHz tested. Result given as a ratio of the signal measured on main output jacks with Main Level knob at 0%, to the signal measured with Main Level knob at 100%. Worst-case results for any channel and frequency reported.
    • Left output jack: -102dB
    • Right output jack: -90dB
  • Channel bleed-through (channel attenuation):
    • Test conditions: Test signal input into each channel with Level knob at 0% and Main Level knob at 100%. Frequencies from 20Hz to 20kHz tested. Result given as a ratio of the signal measured on main output jacks with channel Level knob at 0%, to the signal measured with channel Level knob at 100%. Worst-case results for any channel and frequency reported.
    • Left output jack: channel 4: -90dB at 20kHz; all other channels -110dB
    • Right output jack: channel 4: -84dB at 20kHz; all other channels -110dB
  • Channel cross-talk:
    • Test conditions: Test signal input into each channel. Level knob at 0%, and other channel Level knobs at 100%. Main Level knob at 100%. Frequencies from 20Hz to 20kHz tested. Measured signal subtracted from signal with all Level knobs at 0%, and result given in dB as a ratio to output signal with test channels’ Level knob at 100%. Worst-case results for any channel and frequency reported.
    • Left output jack: -110dB
    • Right output jack: -102dB
• Headphones jack
  • Frequency response: -0.2dB at 20Hz; 0dB at 100Hz to 20kHz (driving 32Ω headphones)
  • Maximum voltage (peak-to-peak): 5Vpp

Included with the Listen Four:

• 10-to-16 pin power cable
• 4 M3 Knurlie screws
