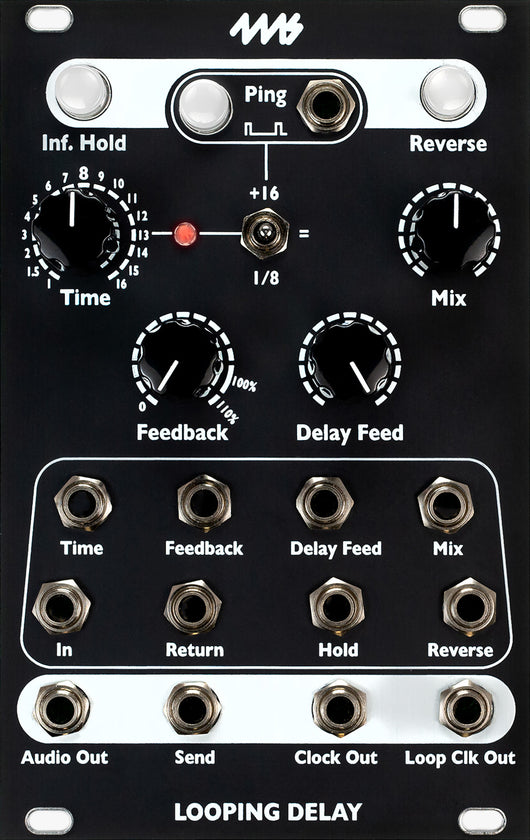

Looping Delay [LD]

Crystal-clear clock-synced delay for looping up to 90 seconds, echoes, sound-on-sound, Karplus-Strong synthesis, and more.

• Loop or echo time is synchronized to a clock
• 87 seconds of delay/loop time maximum in mono mode, 43 seconds in stereo mode
• 48kHz/24-bit sampling rate, loop recorded at 16-bit (24-bit optional)
• Extremely quiet, low noise and low jitter design
• Tap tempo button and clock Ping input set the basis for one "beat"
• Delay/loop time set as a number of musical beats (or fractions of beats) using the Time knob, switch, and CV jack
• Sample-accurate clock output for perfect synchronization
• Loop clock output
• Time switches change range of Time knob from 1/8th notes up to 32 bars
• Digital feedback, up to 110%
• Delay Feed control, independent of dry/wet signal mix
• Infinite Hold mode disables recording input and fixes regeneration at exactly 100%
• Reverse mode plays memory contents backwards
• With an infinite loop locked, knobs or CV can "window" around memory, by shifting the loop
• Trigger inputs for toggling Infinite Hold and Reverse
• Send and Return for applying effects to feedback with external modules
• In stereo mode, Send and Return function as Right Channel Audio Out and In
• CV jacks to control Time, Level, Feedback and Dry/Wet Mix
• 16HP Eurorack module

• Up to 90 seconds of loop time
• 16HP

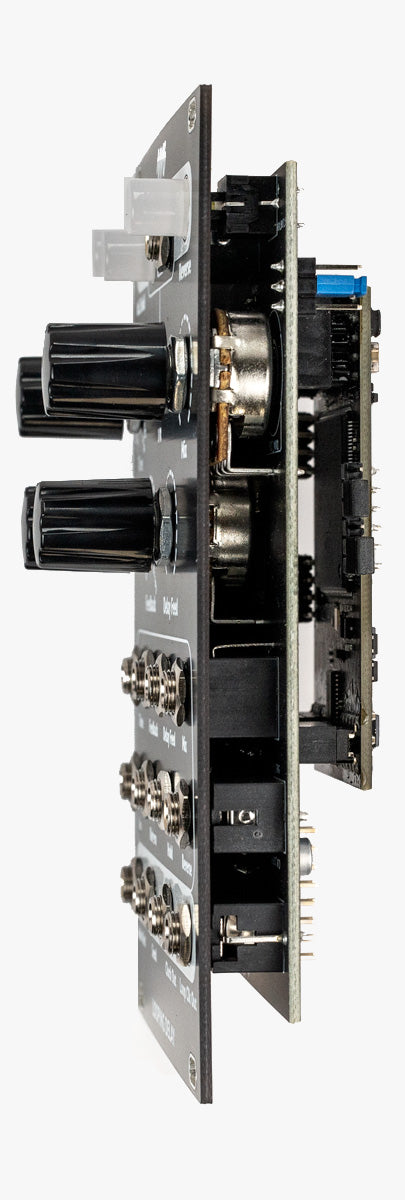

• 1.1" (28mm) maximum depth with power cable
• +12V: 125mA
• -12V: 45mA

User Manual:

• Looping Delay User Manual v1.0

Included with the Looping Delay:

• 16-to-16 pin power cable
• 4 x M3 Knurlie screws
