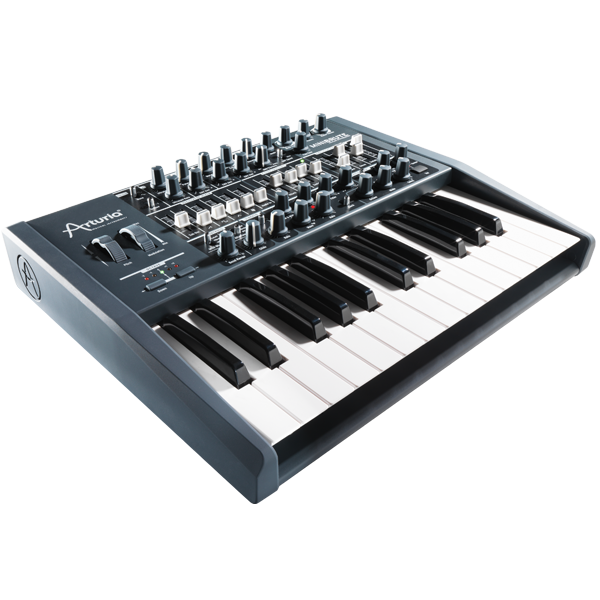

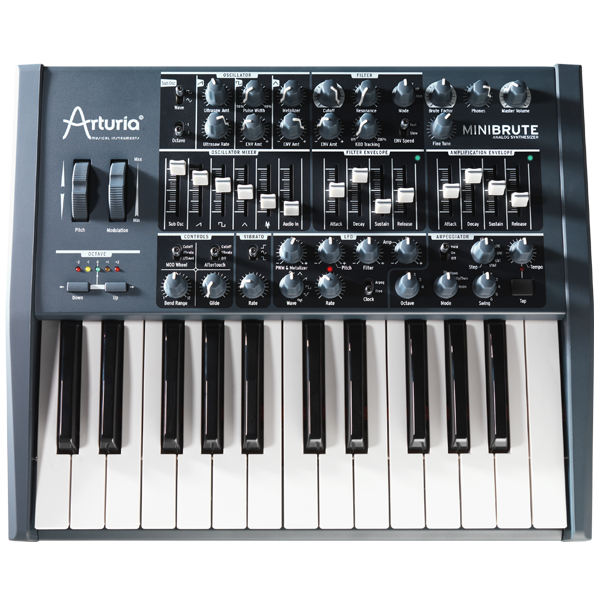

MiniBrute is a revolutionary new analog synthesizer from Arturia. Featuring a pure analog signal path and a host of unique features, it sets a new standard for what a hardware synthesizer should be.
Its 100% analog audio signal path features a VCO wave mixer, the classic Steiner-Parker multimode filter, as well as numerous analog innovations such as the Metalizer, Ultrasaw, and the Brute Factor™. Boasting a complete MIDI, CV and USB connectivity, MiniBrute is right at home with your computer or your vintage synths, making it the ideal companion to deliver a pure analog blast anywhere you go.
Main Features
- Monophonic synthesizer
- 100% Analog Audio Signal Path
- Steiner-Parker Multimode Filter (LP, BP, HP and Notch)
- Voltage Controlled Oscillator with Sub-Osc
- Oscillator Mixer (Sub, Sawtooth, Square, Triangle, White Noise, Audio In)
- LFO1 with 6 waveforms and bi-polar modulation destinations
- LFO2 with 3 vibrato modes
- Brute Factor™ delivering saturation and rich harmonics
- Ultrasaw generating shimmering sawtooth waveforms
- Metalizer bringing extreme triangle harmonics
- Two ADSR Envelope Generators
- 25 note Keyboard with Aftertouch
- Rugged Aluminium Enclosure
- External Analog Audio Input
- CV In/Out controls: Pitch, Gate, Filter, Amp
- MIDI In/Out with 5-Pin DIN connectors
- USB MIDI In/Out
- 1/4” Audio Output and 1/4” Headphone Output
- Gate Source Selection: Audio Input, Hold, Keyboard
- Arpeggiator:
- 4 Modes of Arpeggiation
- 4 Octave Range Control
- 6 Time Divisions
- Swing Control
Box content
- MiniBrute synthesizer
- User manual
- Preset sheets
- Power supply
Size and Weight
- Instrument size : 325 x 390 x70 mm (12.79 x 15.35 x 2.76 inch)
- Instrument weight : 4 kg (8.8 lbs)
MiniBrute Specifications
- Monophonic synthesizer
- 100% Analog Audio Signal Path
- Steiner-Parker 2 pole Multimode Filter (Low Pass, Band Pass, High Pass and Notch)
- Voltage Controlled Oscillator with Sub-Osc (Square, Sine, -1 & -2 oct)
- Oscillator Mixer (Sub, Sawtooth, Square, Triangle, White Noise, Audio In)
Signal Enhancers
- Pulse Width Modulation
- Ultrasaw generating shimmering sawtooth waveforms
- Metalizer bringing extreme triangle harmonics
- Brute Factor™ delivering saturation and rich harmonics
- LFO1 with 6 waveforms (Sine, Triangle, Sawtooth, Square, Random Square, Random Sine) and bi-polar modulation destinations (to PWM & Metalize, Pitch, Filter, Amplifier)
- LFO1 clock syncable to Arpeggiator (Arpeg, or free).
- LFO2 with selectable rate and 3 vibrato modes (trill up, trill down, sine)
- Two ADSR Envelope Generators with selectable slow/fast speed (from 1 millisecond to more than 10 seconds)
- Keyboard Tracking on the VCF Cutoff
- 25 note semi-weighted keyboard with aftertouch (assignable to Cutoff or Vibrato amount)
- Mod Wheel (assignable to Cutoff, Vibrato, or LFO amount)
- Pitch Wheel (with selectable bend range)
- Octave selector from -2 to +2 octaves
- External Analog Audio Input

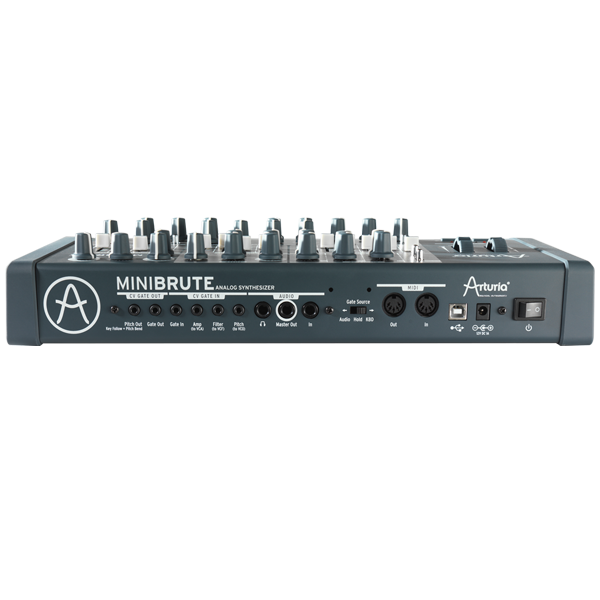

- CV In/Out controls: Pitch, Filter, Amp
- MIDI In/Out with 5 pin DIN connectors
- USB MIDI In/Out
- CV Gate source selector (Audio/Hold/Keyboard)
- 1/4” Audio Output and 1/4” Headphone Output
