Per4mer

• Per4mer is a quad performance effects eurorack module designed with live performance, studio use, and sound design in mind. Includes 4 performance effects (Delay, Reverb, Glitch & Tape Stop) and 2 audio processing effects (color and compressor with side chain).

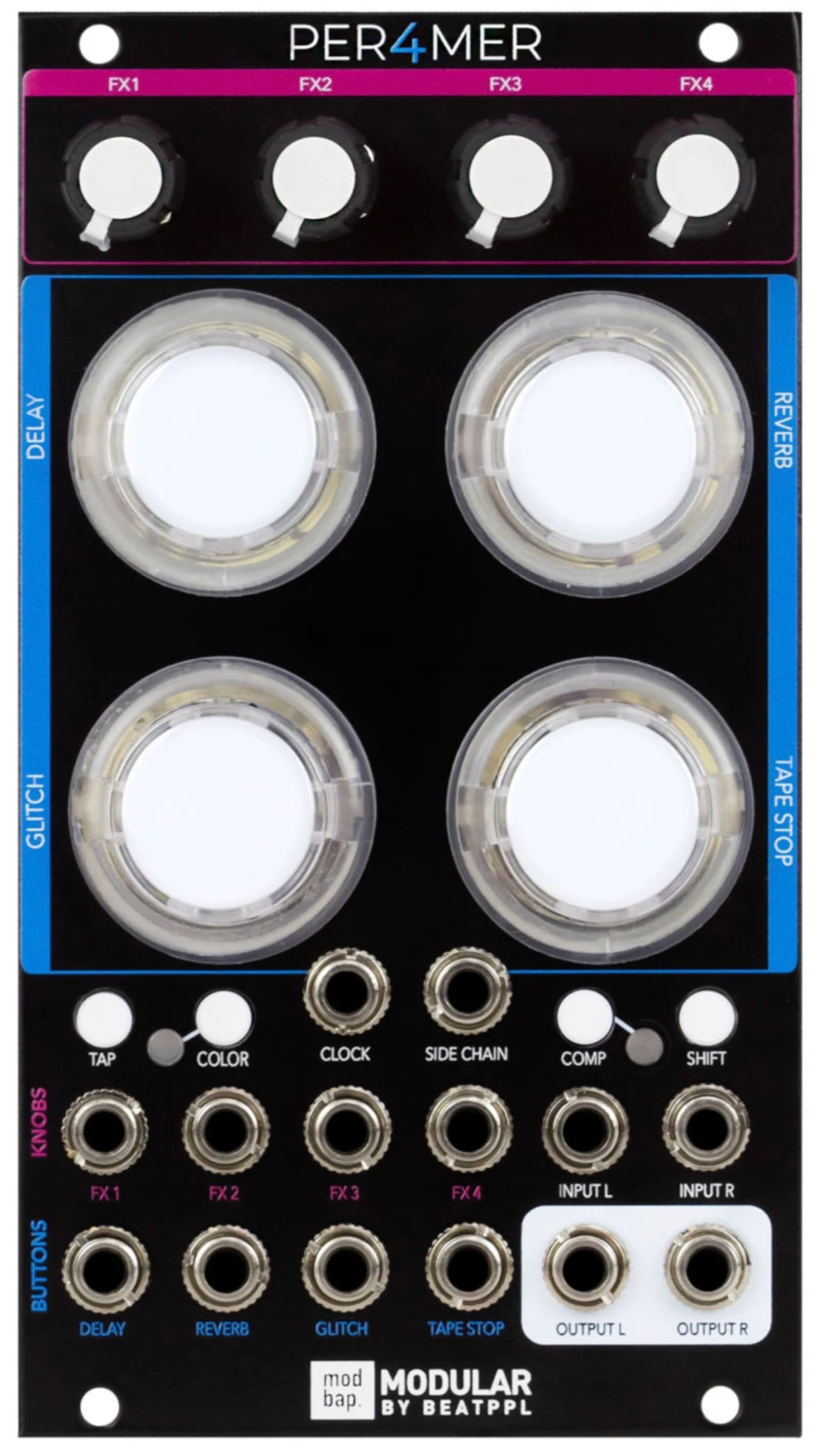

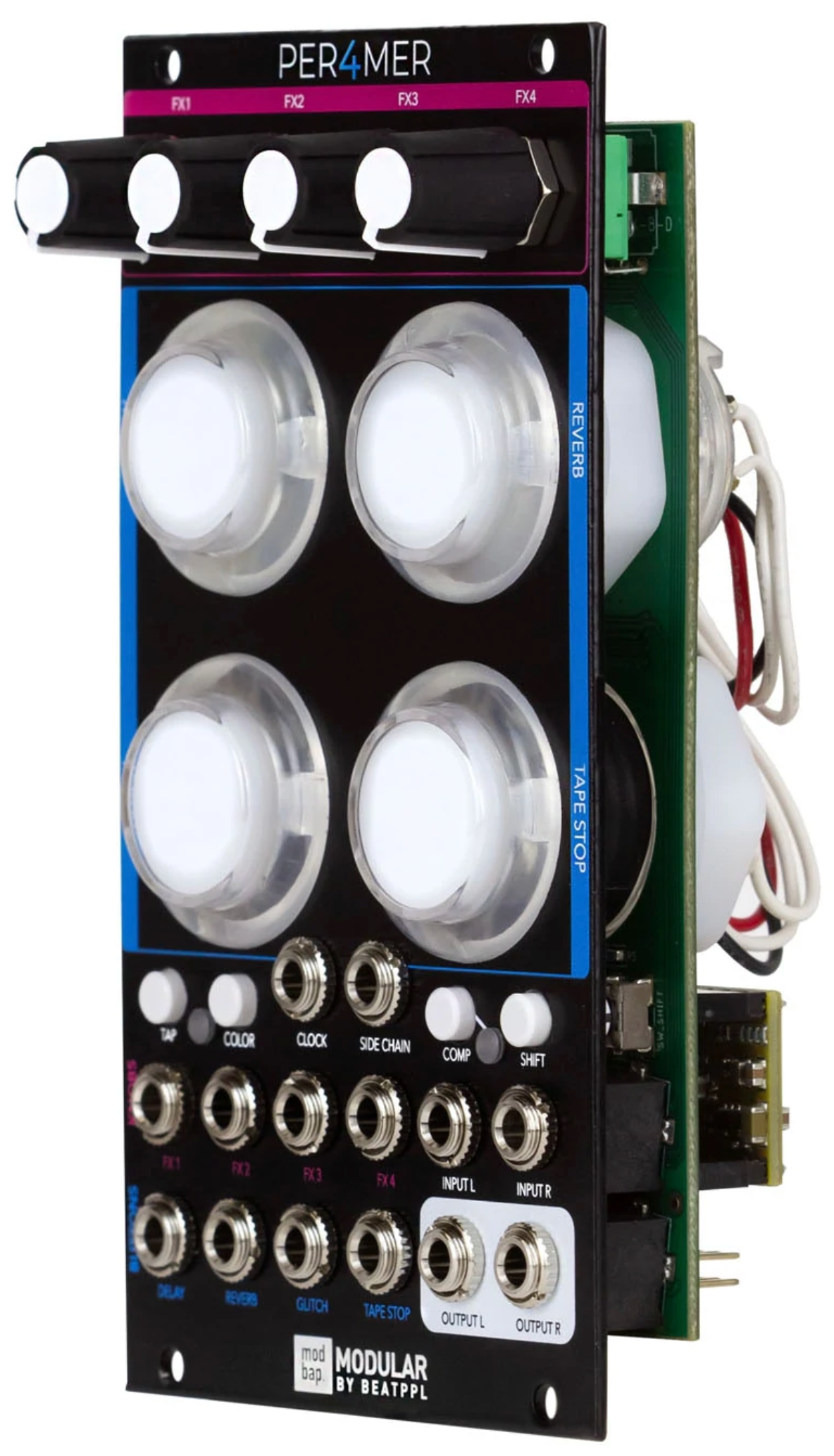

  Per4mer is a 14hp eurorack formatted quad performance effects unit. Inspired by time-honored DJ effects processing boxes, Per4mer allows for a hands-on and CV / Gate controlled eurorack effects performance interaction.  Whether momentarily engaging or latching FX, Per4mer offers an unrivaled and fun experience.

  The basic principle of Per4mer is to feed in an audio input and to trigger on-the-fly effects, bringing DJ style live improvisation to a modular environment. Effects can be triggered simultaneously or individually where an inspiring effect palette combines to generate unique creative beats and melodies.

  Per4mer includes 4 performance effects (Delay, Reverb, Glitch, Tape Stop) and 2 processing effects (Color processor & Compressor). Each of the 4 performance effects has its own set of 4 parameters controlled by the 4 knobs or CV inputs. Effects can be used simultaneously or individually allowing for a vast variety of creative effects combinations.

  The Color processor allows for engaging any of the 8 coloration presets – Classic (12bit), LoFi (8 Bit), Saturation, WaxWax2, LP Filter, HP Filter, White Noise with wet/dry control. Combine any one of these color presets with the onboard Compressor and Side-Chain input to instantly transform any audio signal’s mood and vibe.

  4 no-click 24mm mini arcade buttons (life cycle rated at 10 million button presses)

• 4 knobs to control 4 parameters per effect

• 4 performance effects (Delay, Reverb, Glitch & Tape Stop)

• AR envelop per performance effect

• 2 processing effects (Color and Compressor)

• 8 fixed color presets (Classic (12bit), LoFi (8 Bit), Saturation, Wax, Wax2, LP Filter, HP Filter, White Noise) with wet/dry control

• Compressor with controls for Make-up Gain, Threshold, Ratio, Attack, and Release.

• Side-chain input with Side-chain detection (via side-chain input, clock input, or tap tempo)

• Clock input

• Tap tempo

• CV targeting (target specific effects with CV inputs)

• CV control over knobs

• Gate inputs to trigger the arcade buttons

• Stereo input and output

• Specs

• Width: 14HP

• Depth: 30mm

• Power: 50mA +12V, 50mA -12V

• Built on the ElectroSmith Daisy platform

Documentation:

• Per4mer User Manual – Download

• Per4mer Quick Reference Guide – Download
