Super-Modulated multiple tap delay
- 1200mS real time selectable multiple-tap delay line
- Massive multi LFO modulation controls
- 6 custom tuned LFOs with adjustable waveforms for subtle to aggressive pitch shifting effects
- Adjustable Tilt EQ filter in delay feedback
- Tempo syncable stereo Barberpole Phaser
- Multimode stereo Dynamic Flanger w/ feedback
- Unique feedback topology
- Dimension control for smearing reflections
- Selectable quarter or dotted eighth note Tap Tempo
- Digitally controlled Analog mix control

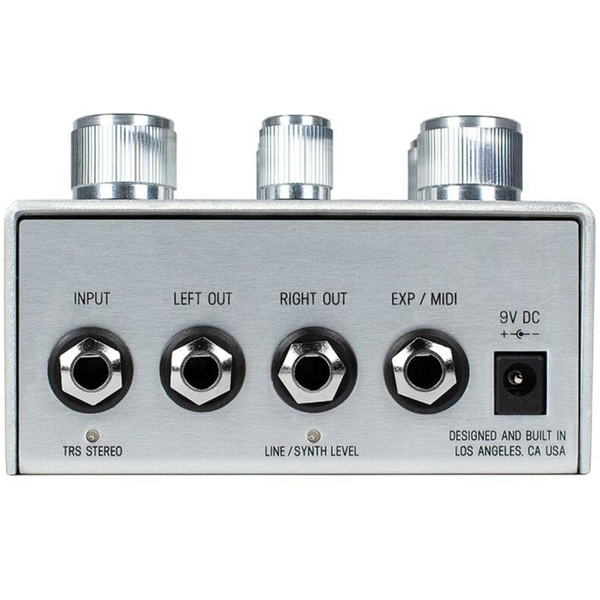

- Stereo input and output
- Switchable input output headroom level for Guitar, Synthesizer or Line levels
- Expression pedal control over all parameters simultaneously
- Presets available via external 4-Preset switch or MIDI
- MIDI in/out over TRS via the EXP jack
- External Tap Tempo over TRS
- MIDI beat clock synchronization
- Premium analog signal path and 24-bit AD/DA w/32 bit floating point DSP
- Premium Analog Devices JFET input section
- Color – white powder coat with fine iridescent flake
- Designed and built in Los Angeles, California U.S.A.
SPECS
- Premium quality 24 bit A/D and D/A
- 32 Bit floating point DSP hardware
- Premium low noise Analog signal path throughout
- Digitally controlled Analog Dry path for wet/dry mix
- Analog Devices JFET input circuitry
- Selectable True Bypass (Relay) or Analog Buffered Bypass
- Durable white powder coat with fine iridescent flake
- Current draw < 150 mA
- Dimensions – 4.25″ wide, 4.5″ long, 2″ tall
- Sold Separately. Requires Standard 9V center negative pedal power supply 500mA to properly power any one of your Meris pedals. Sold Separately.

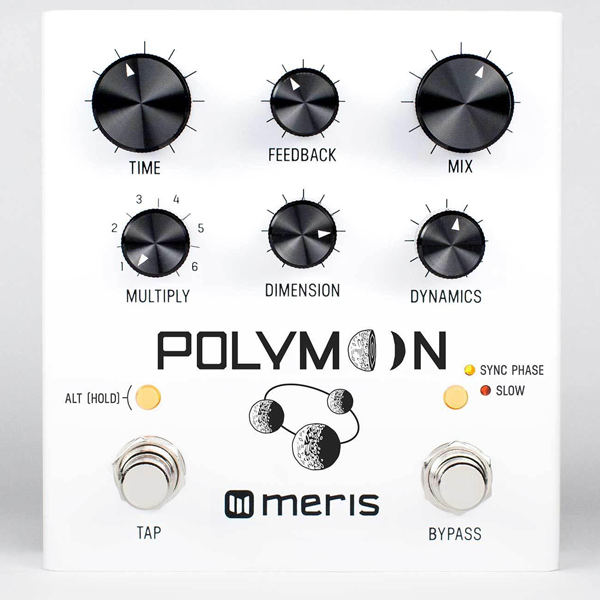

CONTROLS
Time
Sets the time for the delay and the synchronized phaser
Alt Function: Early Modulation
Triangle waveform modulation of the early delay taps. Ranges from gentle modulation, to FM, to pitch effects.
Feedback
Sets the feedback amount
Alt Function: Feedback Filter
Controls filter in the feedback path. Set to noon for no filtering, set towards minimum for a darker filter, set towards maximum for a brighter filter.
Mix
Adjusts the balance between Dry and Wet signals
Alt Function: Delay Level
Sets the gain of the Wet signal. Ranges from 0dB to -12dB. For auto-scaling, set to min.
Multiply
Sets the number of delay taps added to the output
Alt Function: Late Modulation
Triangle waveform modulation of the later delay taps. Ranges from gentle modulation, to FM, to pitch effects.
Dimension
Sets the dimension amount. Dimension smears and sustains the delay tap reflections
Alt Function: Dynamic Flanger Mode
Set to minimum for Envelope Down, set to noon for Envelope Up, and set to maximum for LFO
Dimension
Sets the dimension amount. Dimension smears and sustains the delay tap reflections
Alt Function: Dynamic Flanger Mode
Set to minimum for Envelope Down, set to noon for Envelope Up, and set to maximum for LFO
Hold to access Alt Functions
Alt Functions are only accessible when this button is held
Tap
Sets the time for the delay and the synchronized phaser
Alt Function: Dotted Eighth Note
Changes current tempo from 1/4 notes to dotted 1/8 notes
Hold Tap: to engage Half Speed Delay
Press to Select Phaser
Slow: Stereo Barberpole phaser with fixed speed of 0.1 Hz
Sync: Stereo Barberpole phaser with speed linked to a quarter note of the delay time
Slow + Sync: Stereo Barberpole phaser with speed linked to a whole note of the delay time
Bypass
Disables processing and passes the input through to the output
Alt Function: Dynamic Flanger Feedback
Adds negative feedback to the Dynamic Flanger
