On Sale for $2999. 99
till the end of AUGUST!
On Sale for $2999. 99 till the end of AUGUST!

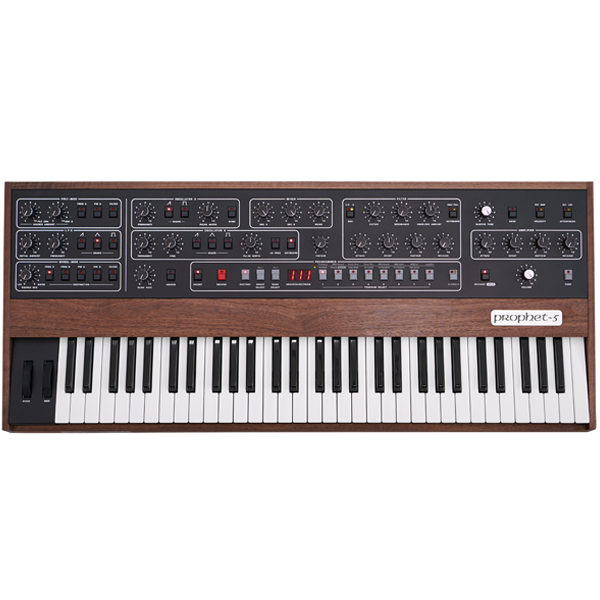

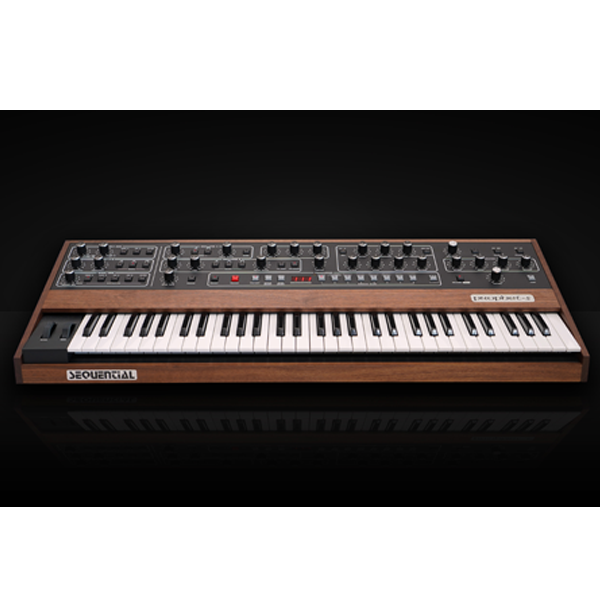

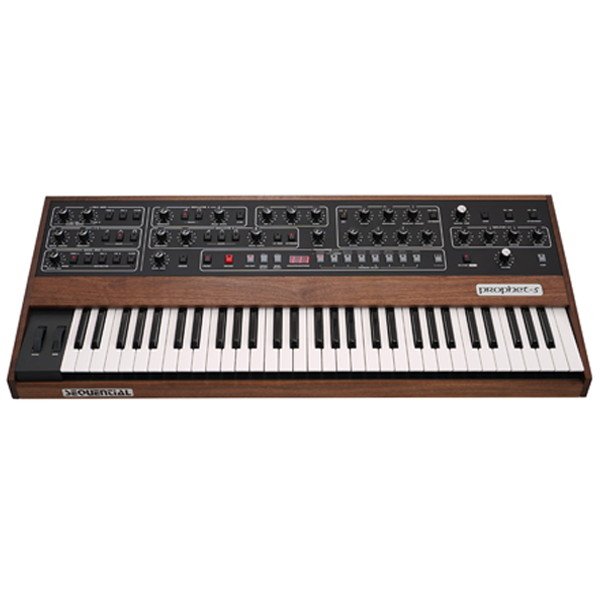

Prophet-5 is Dave Smith’s return to the analog poly synth that changed the world. It’s “the best of all Prophet-5s” as Dave puts it because it embodies all three revisions of the legendary synth — Rev1, Rev2, and Rev3 — through the use of genuine Curtis analog VCOs and filters (as in the Rev3) as well as new 2140 low-pass filters designed by Dave Rossum, like the 2040 filters he designed in the original Rev1 and Rev2. A Rev switch lets you choose between the two filter designs. It also adjusts the Filter Envelope’s shape and response to match the original Prophet Rev 1/2 or Rev 3 respectively.
The result is as pure a renewal of an analog classic as you could wish for, with the authentic, muscular sound of the original and the roadworthiness of a state-of-the-art modern instrument.
Oscillators
- Two authentic CEM 3340 VCOs per voice
- Three simultaneously selectable wave shapes (triangle, sawtooth, pulse) per oscillator
- Pulse width per oscillator
- Hard sync: oscillator 1 syncs to oscillator 2
- Low frequency mode (oscillator 2)
- Keyboard tracking on/off (oscillator 2)
- “Vintage” knob for increased tuning instability, reproduces characteristics of all original revisions of Prophet-5
Mixer
- Oscillator 1 amount
- Oscillator 2 amount
- White noise amount
Low-Pass Filter
- Four-pole, resonant, low-pass filter per voice
- Switchable between authentic versions of the Prophet-5 Rev1/2 filter and Prophet-5 Rev3 filter
- Rev1/2 filter is a Dave Rossum-designed 2140, the modern counterpart of the original 2040 filter found in the Prophet-5 Rev1 and Rev2
- Rev3 filter is a Doug Curtis-designed CEM 3320, the modern counterpart of the original found in the Prophet-5 Rev3
- Filter can be driven into self-oscillation with the Resonance control
- Keyboard tracking: off, half, full
Filter Envelope
- Four-stage (ADSR) envelope generator
- Velocity modulation of envelope amount
AMPLIFIER ENVELOPE
- Four-stage (ADSR) envelope generator
- Velocity modulation of envelope amount
LOW FREQUENCY OSCILLATOR
- Three wave shapes: sawtooth, triangle, square. All waveshapes can be engaged simultaneously
- Both Initial Amount and mod wheel control
- Mod destinations: oscillator A frequency, oscillator B frequency, oscillator A and B pulse width, filter cutoff
POLY MOD
- Sources: filter envelope and oscillator B
- Destinations: oscillator A frequency, oscillator A pulse width, filter cutoff
-
AFTERTOUCH
- Channel (mono) aftertouch
- Destinations: filter cutoff frequency, LFO amount
PERFORMANCE CONTROLS
- Full-sized, semi-weighted, premium Fatar 5-octave keyboard with velocity and aftertouch
- Mod wheel
- Spring-loaded pitch wheel with selectable range per program (1 to 12 semitones up and down)
- Polyphonic glide (portamento)
- Unison (monophonic) mode with configurable voice count, from one to all five voices (10 voices for Prophet-10) and key modes
- Preset switch: when off, the front panel is live; what you see is what you hear
PATCH MEMORY
- 200 user and 200 factory programs in 5 banks of 40 programs each
- Direct program access, including Prophet 5-style single-button access to the current set of 8 programs

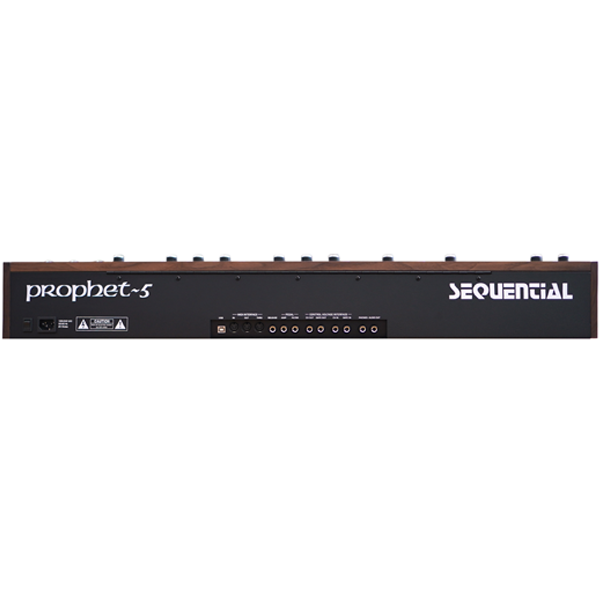

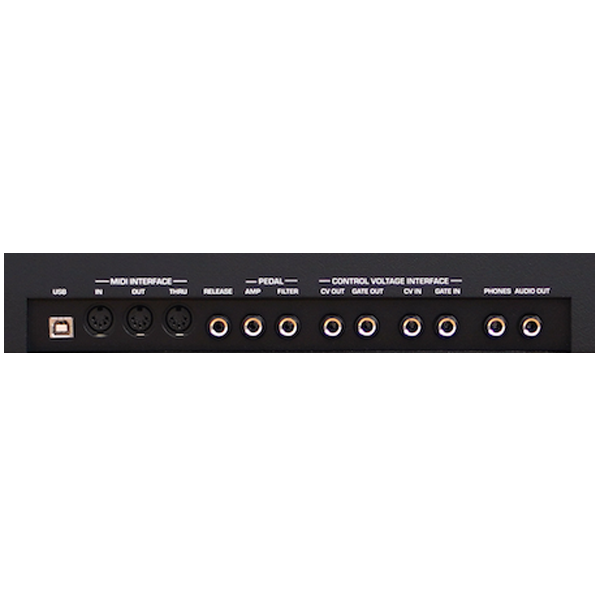

IN/OUT
- Mono output (1 x 1/4” phone jack)
- Headphone output (stereo, 1/4” phone jack)
- MIDI in, out, and thru ports
- USB for bidirectional MIDI communication
- Low-pass filter cutoff expression pedal input
- Volume expression pedal input
- Sustain footswitch input
POWER
- IEC AC power inlet for internal power supply
- Operates worldwide on voltages between 100 and 240 volts at 50 to 60 Hz; 30 watts maximum power consumption
PHYSICAL SPECS
- 37.5” L x 16.4 W x 4.9" H (95.25 cm x 41.6 cm x 12.4 cm)
- 31 lbs (14.06 kg)
- Premium steel and hand-oiled, premium black walnut heartwood body and trim
