Row power 35 (RP35)

  • Sale
  • Regular price $125.00


Row Power is a clean, regulated, and protected power solution for eurorack systems. Row Power 35 provides 35W of power, suited for any typical eurorack row (84HP to 168HP):

  • +12V @ 1.4A
  • -12V @ 1.25A
  • +5V @ 1.0A

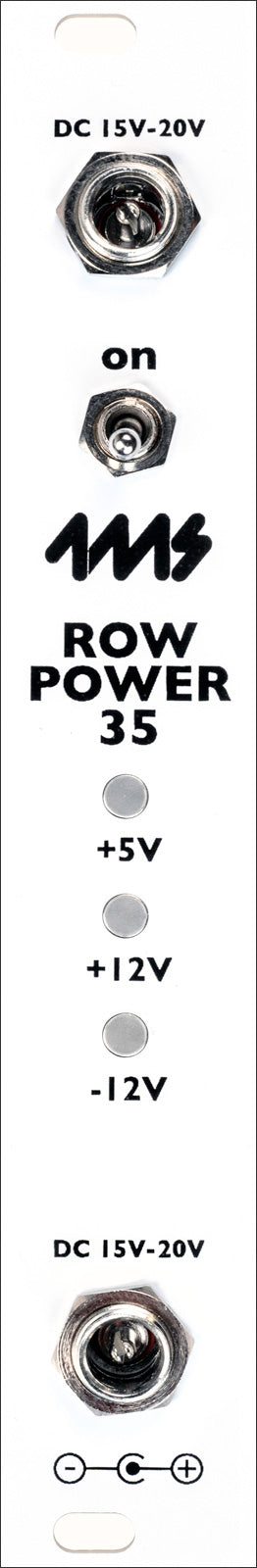

Simply plug a universal power supply (laptop style 15V - 20V DC; we recommend our 90W power brick) into either of the barrel plugs on the 4HP panel. Connect your modules via flying-bus cables or the Bus Stick.

Daisy-chain multiple Row Powers to use a single power brick for multiple rows (typically 3-5 rows per power brick). Each row will be independently regulated and protected for ultra-low cross-talk between rows. Rows can also be hot-swapped (plugged/unplugged without powering the whole system down).

Basic Features:

  • Two power jacks for daisy-chaining multiple ROW POWERS: a common laptop-style power brick could power 3-5 rows (typical)
  • On/off switch cuts power without interrupting the daisy-chain
  • ROW POWER 35 provides more than enough power for a 84HP or 104HP row of modules.
  • Ultra-clean: Each rail is separately regulated with high-grade components
  • ROW POWER is efficient, so it won't heat up your system.

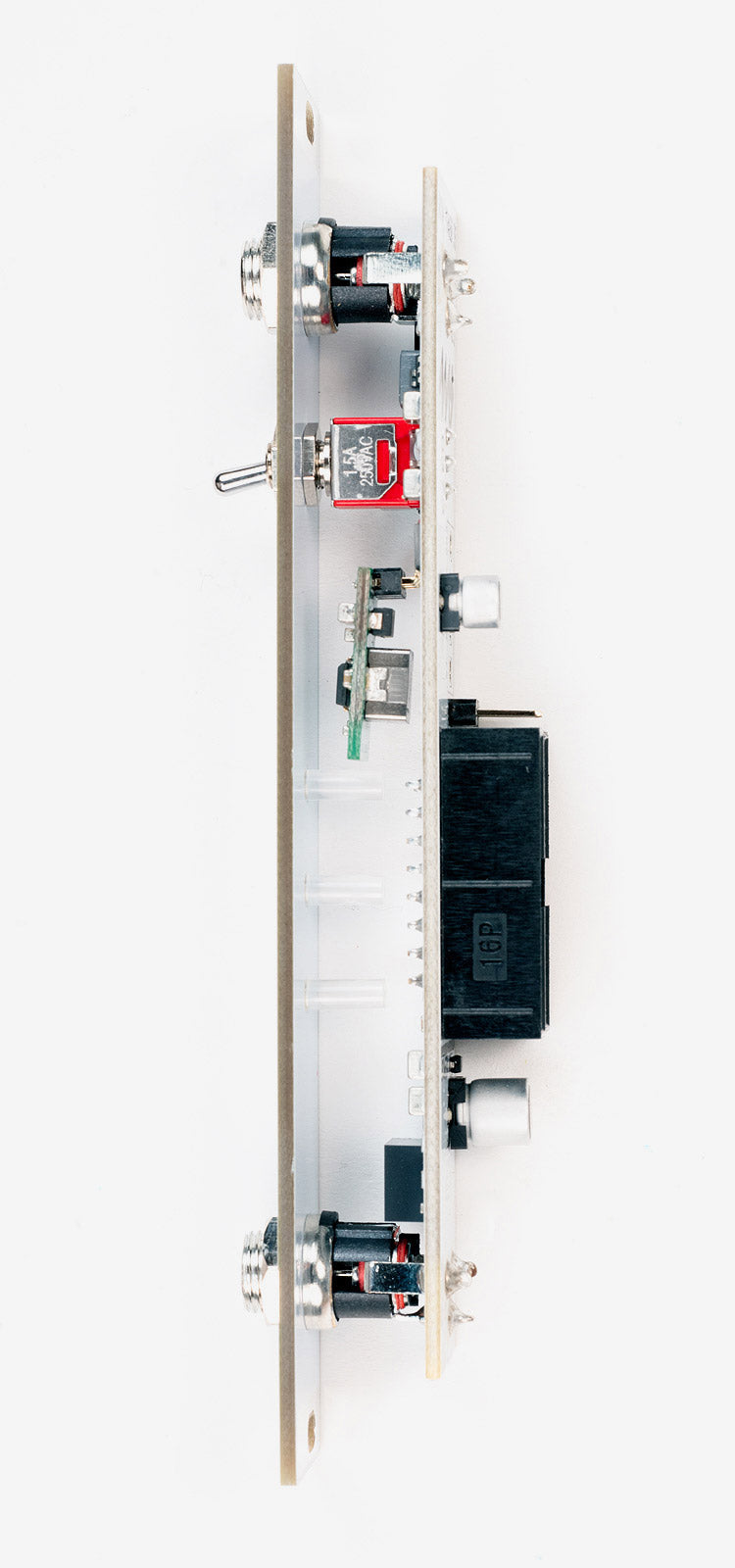

  • Skiff-friendly: only 27mm (1.1") with power connectors installed.
  • CV/Gate headers for expansion

Electrical and Mechanical Specifications:

  • Module Size:
    • 4 HP Eurorack format module
  • Power Output:
    • +12V @ 1.4A, -12V @ 1.25A, +5V @ 1.0A
  • Powered by laptop-style DC power supply: 2.1mm barrel, positive center, 15V-20V.

Included with the Row Power 35:

  • 2 M3 Knurlie screws
