Pittsburgh Modular

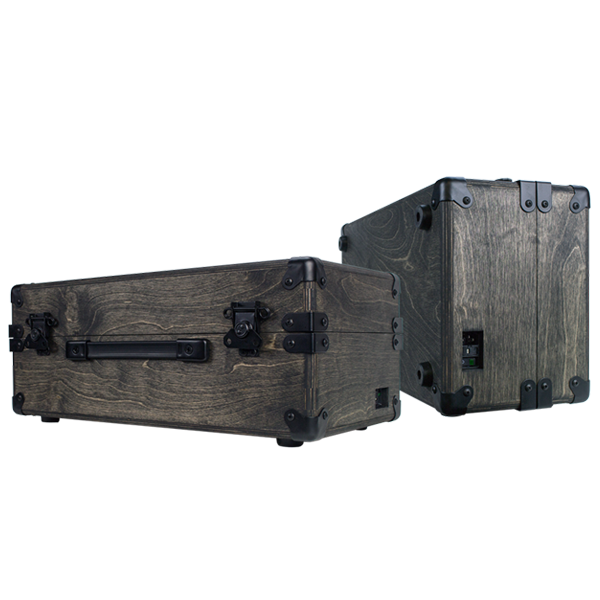

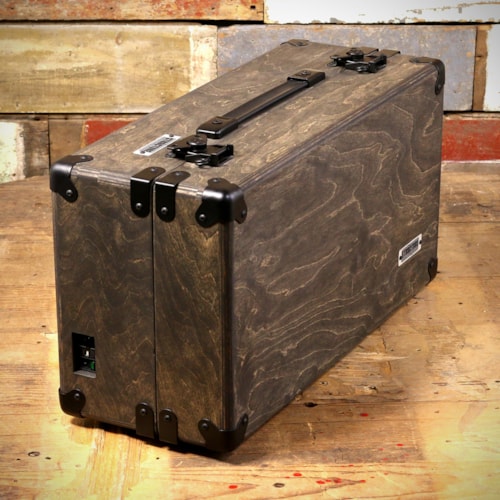

Structure EP-208

  • Sale
  • Regular price $899.00


Maximum Power for a New Generation

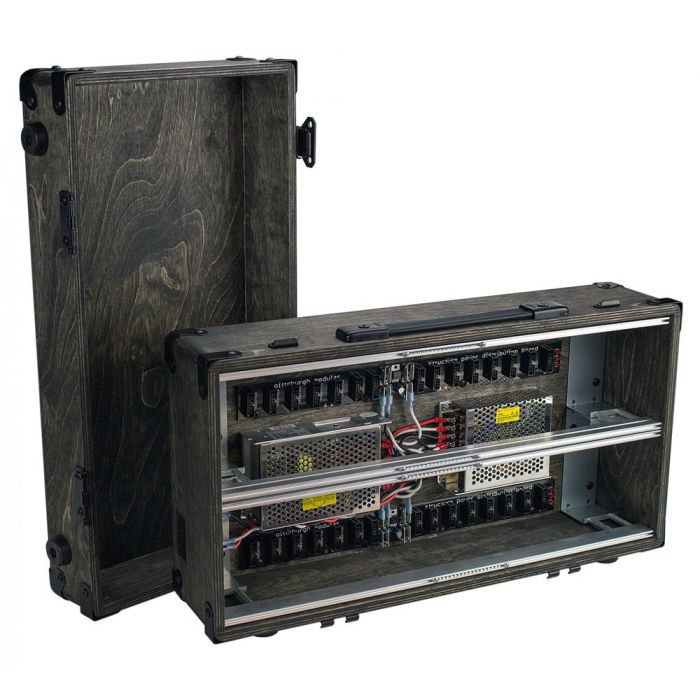

A serious double row, 208hp powered eurorack travel case with lid. Includes a heavy duty, internal power supply designed to exceed the needs of the most demanding analog and digital eurorack systems.

Structure EP-208 Features:

EP-208 Power

4 amps of Clean +12v Power

3 amps of Clean -12v Power

2 amps of Clean +5v Power

30 Keyed Eurorack Power Headers

External Power Switch with LED

Fused Power Protection

Universal IEC Power Connector

EP-208 Enclosure

Hardwood and Steel Construction

Two 104hp Rows

208hp total space available

Removable Lid

Lid Fits Over Fully Patched System (No need to remove patch cables)

Edge to Edge Rails Reduce Gaps Between Modules and the Case Side

20 Smooth Sliding Square Nuts Per Rail (Holds up to 40 modules)

Includes 80 Black (Size 4-40 1/4") Module Mounting Screws

Beautifully Hand-Stained Hardwood

Matching Black Steel Hardware Set

EP-208 Dimensions

External Depth with lid:9 1/4”

External Depth without Lid: 5 1/2”

External Height: 12 1/4”

External Width: 22”

Internal Depth Above Power Supply: 2 3/4”

Internal Depth Above Bus Board: 3 3/4”

Internal Depth Above Nothing: 4 1/4”
