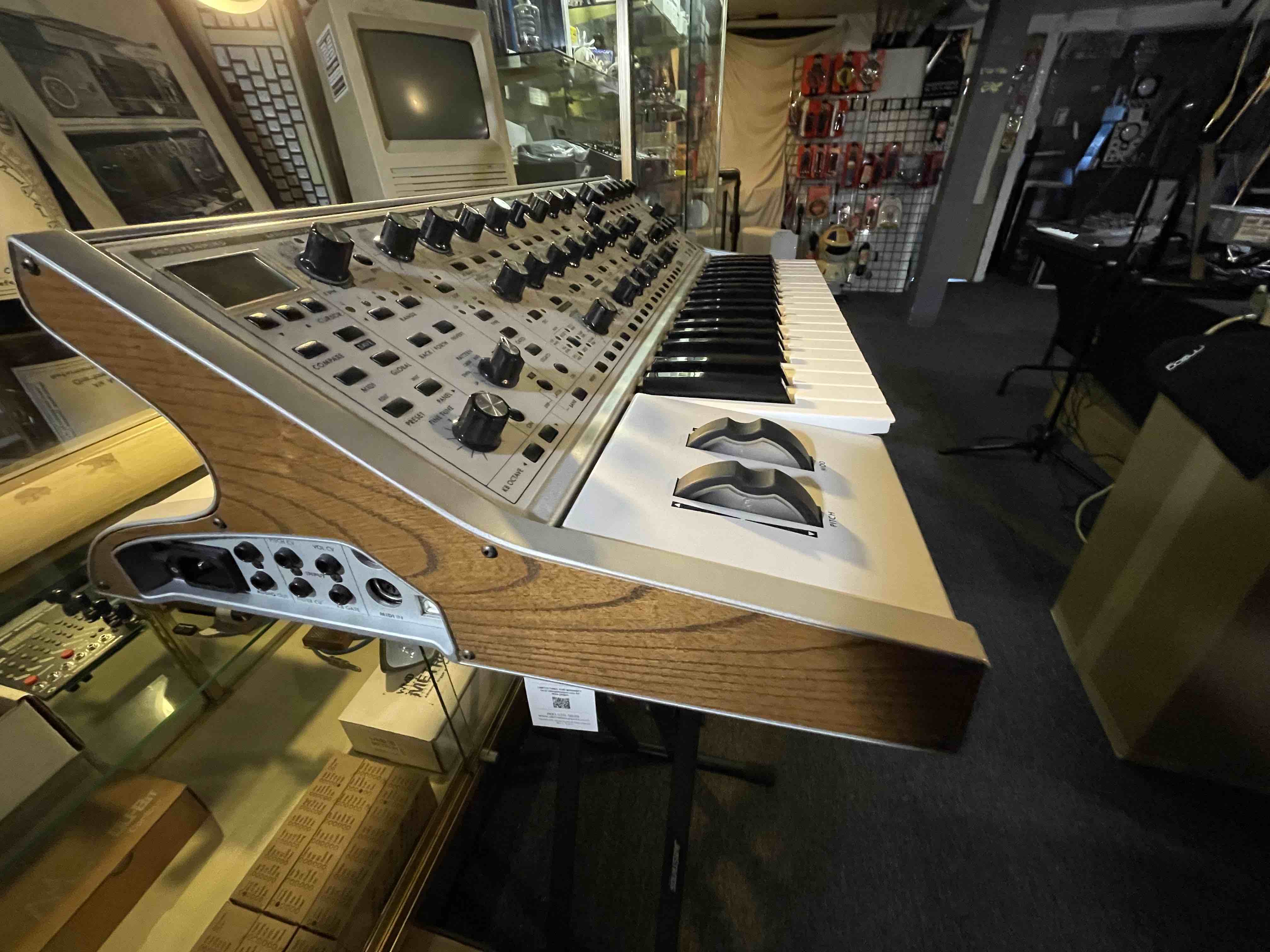

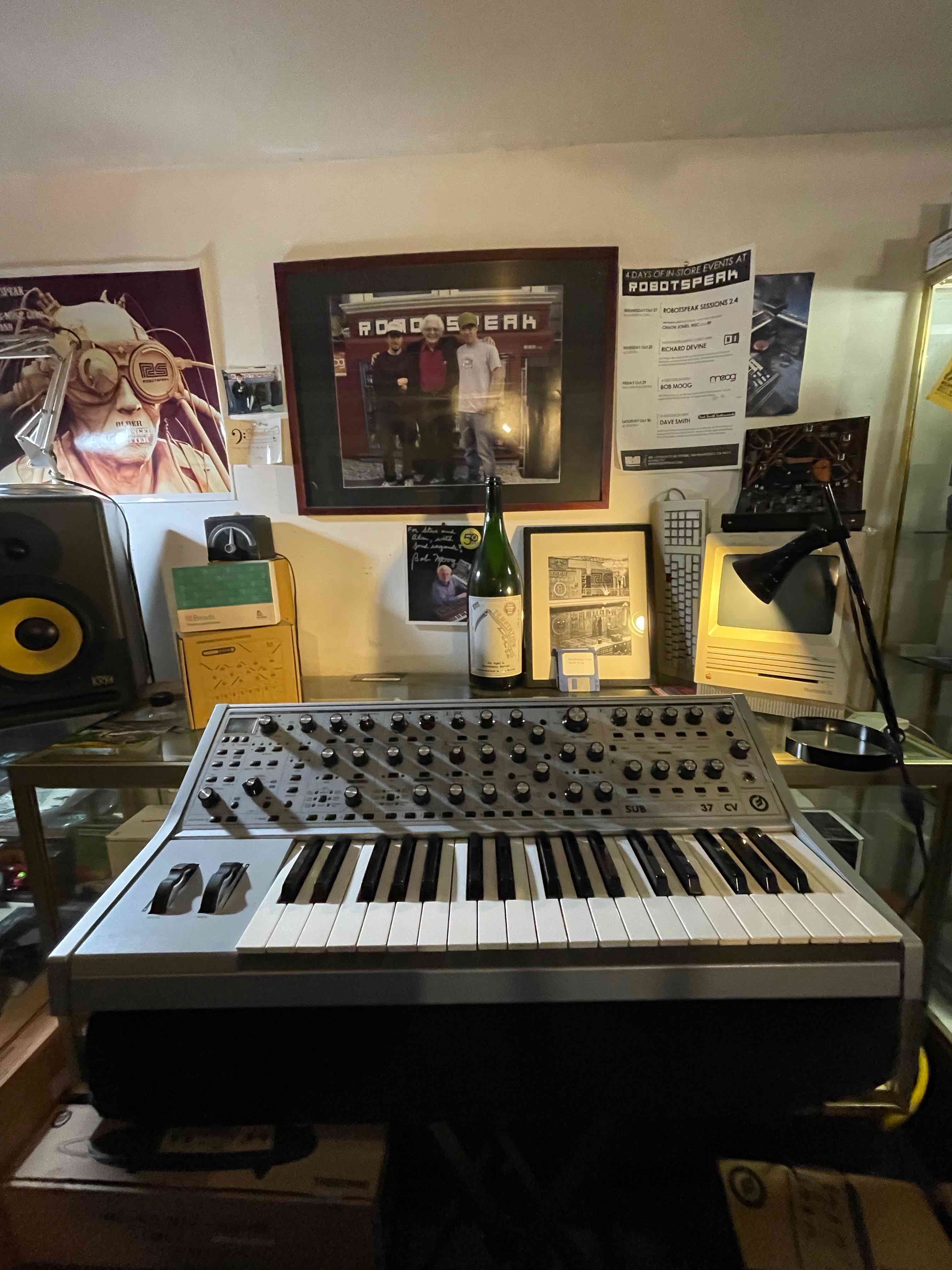

Anchored by a pair of solid aluminum side pieces inset with North American hardwood and affixed to a rugged steel and aluminum enclosure, the Subsequent 37 CV features four assignable CV outputs and two assignable Gate outputs for interconnectivity with large-format and Eurorack modular systems, an upgraded keybed for improved playability, a high-powered headphone amplifier for live-monitoring, and a modified analog signal path.
“We are really excited to incorporate community feedback into the evolution of an instrument. Adding CV interconnectivity was the starting point, but we have also increased the headroom in the mixer and significantly extended the range of Multidrive, giving the Subsequent 37 CV expanded sonic capability and modular control." - Cyril Lance, Moog Chief Engineer
The Subsequent 37 CV’s mixer now has double the headroom of the Sub 37 Tribute Edition. Taking advantage of the mixer’s newfound flexibility, the gain-staging of the Ladder filter has been reshaped to boost harmonic saturation and analog compression. Completing the sonic evolution is a re-tuned Multidrive circuit that extends well beyond the grit and growl of the original Sub 37.

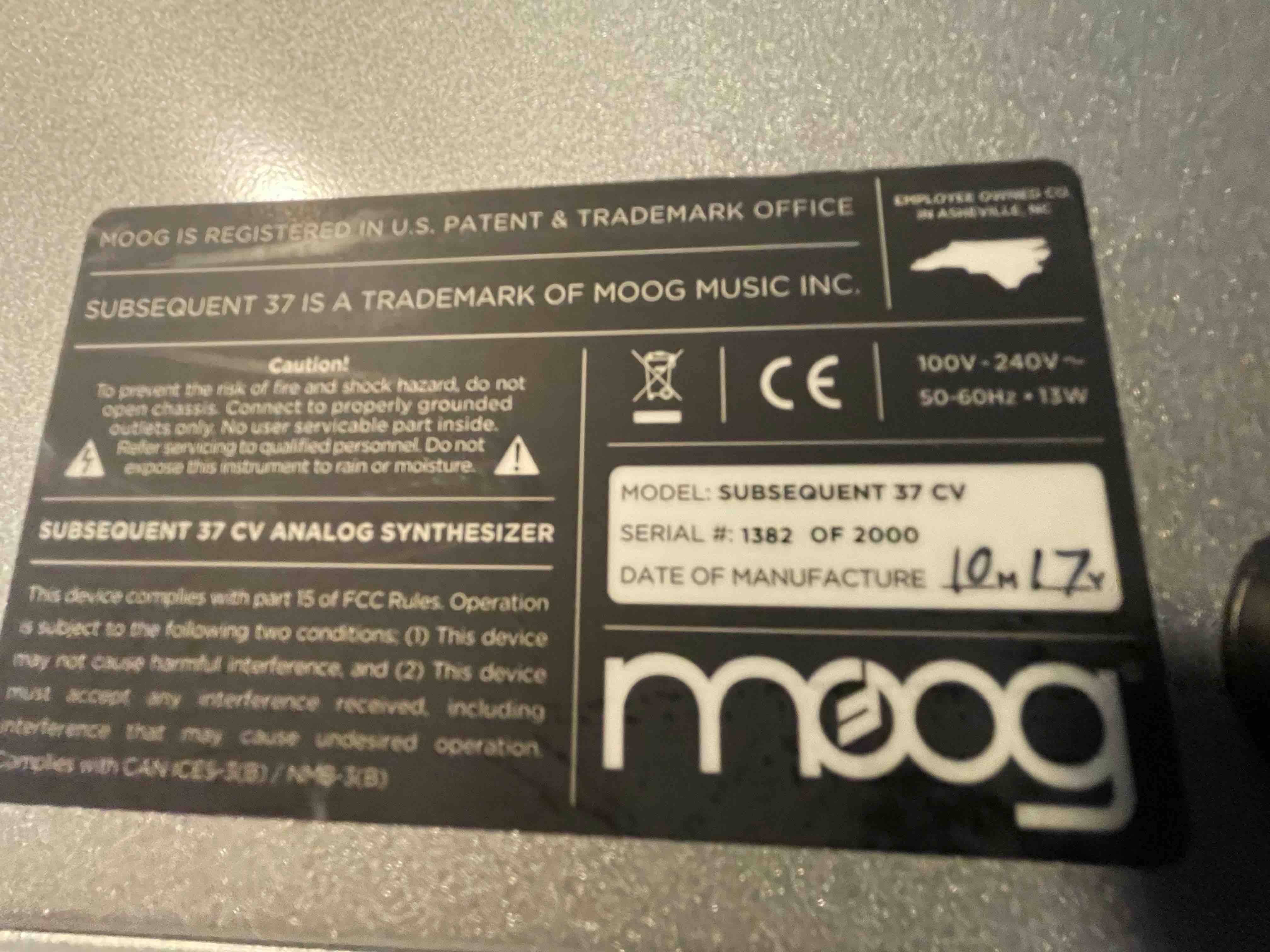

Subsequent 37 CV production is limited to 2000 pieces worldwide. Each instrument is lovingly handcrafted by Moog employee-owners.
SPECS
TYPE: Programmable Paraphonic Analog Synthesizer
SOUND ENGINE: 100% Analog
NUMBER OF KEYS: 37
TYPE OF KEYS: Semi-Weighted with After Pressure
CONTROLLERS: Pitch Bend, Mod Wheel, After Pressure, Velocity
POLYPHONY: Selectable Monophonic or Duophonic
SOUND SOURCES: 2 Variable Waveshape Oscillators, 1 Square Wave Sub Oscillator, 1 Analog Noise
Generator, 1 External Input/Filter Feedback
OSCILLATOR CALIBRATION RANGE: 22Hz-6.8kHz. Guaranteed note range at 8’ of Note 18 to 116
MOD SOURCES: Triangle, Square, Saw, Ramp, Sample & Hold, Filter EG/PGM
MOD DESTINATIONS: Osc 1 Pitch, Osc 2, Osc 1 & 2 Pitch, Filter, LFO Rate, VCA Level, Osc 1 Wave, Osc 2
Wave, Osc 1 & 2 Wave, Noise Level, EG Time, and Programmable Destinations
FILTER: 20Hz-20kHz Moog Ladder Filter w/ 6/12/18/24 dB/Oct Filter Slopes and MultiDrive
AUDIO INPUT: 1xTS
AUDIO OUTPUT: 1xTS, 1xTRS Headphone
PRESETS: 256 Presets - 16 Banks, 16 Patches per Bank
MIDI I/O: DIN In, Out, and MIDI over USB
CV/GATE INPUTS: Filter CV, Pitch CV, Volume CV, KB Gate

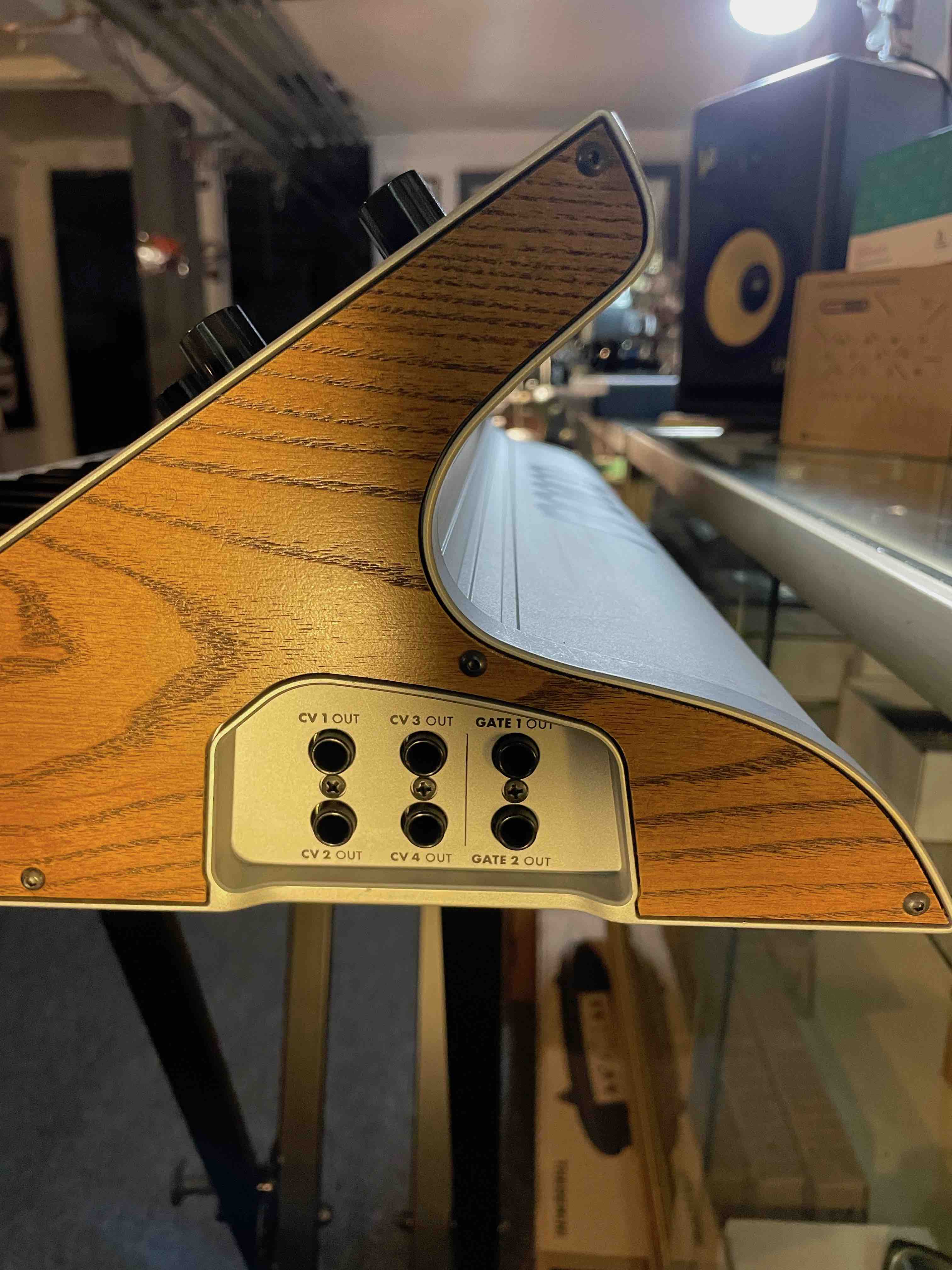

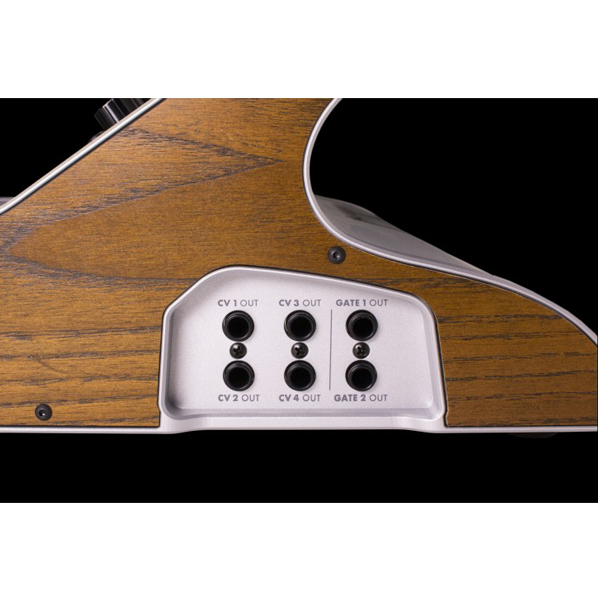

CV/GATE OUTPUTS: 4x Assignable CV and 2x Assignable Gate
TRANSPOSITION: +/- 2 Octaves
LFO: 0.01Hz - 1000Hz
WEIGHT: 22LBS / 10KG
DIMENSIONS: 6.75” H x 26.375” W x 14.75 D / 17cm H x 68cm W x 37.5cm D
NOMINAL OPERATING TEMPERATURE: 10 - 35 C (50 - 95 F)
OPERATIONAL TEMPERATURE RANGE: 10 - 50 C (50 - 122 F)
INPUT VOLTAGE: 100 VAC - 240 VAC / 50 - 60 HZ / 13W
