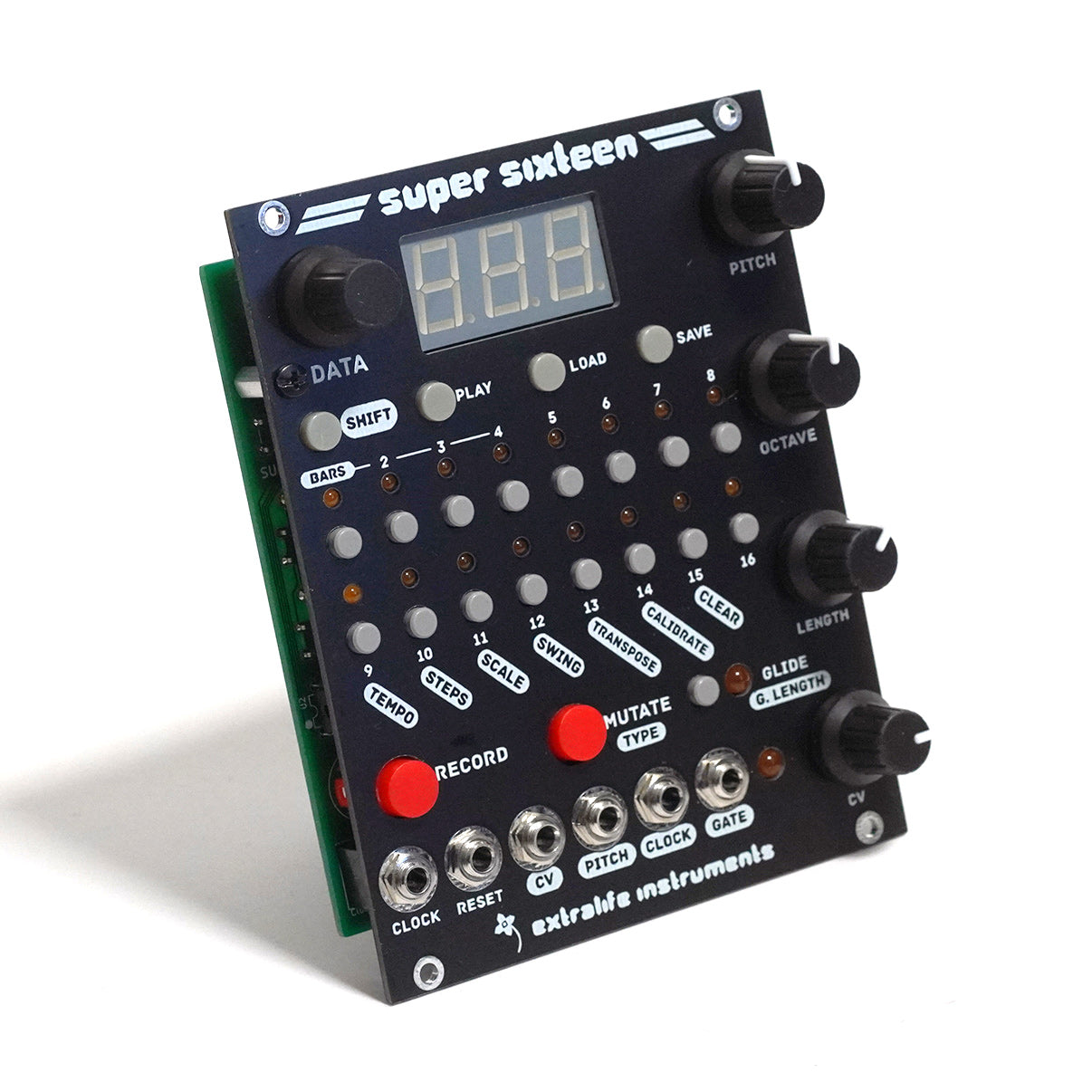

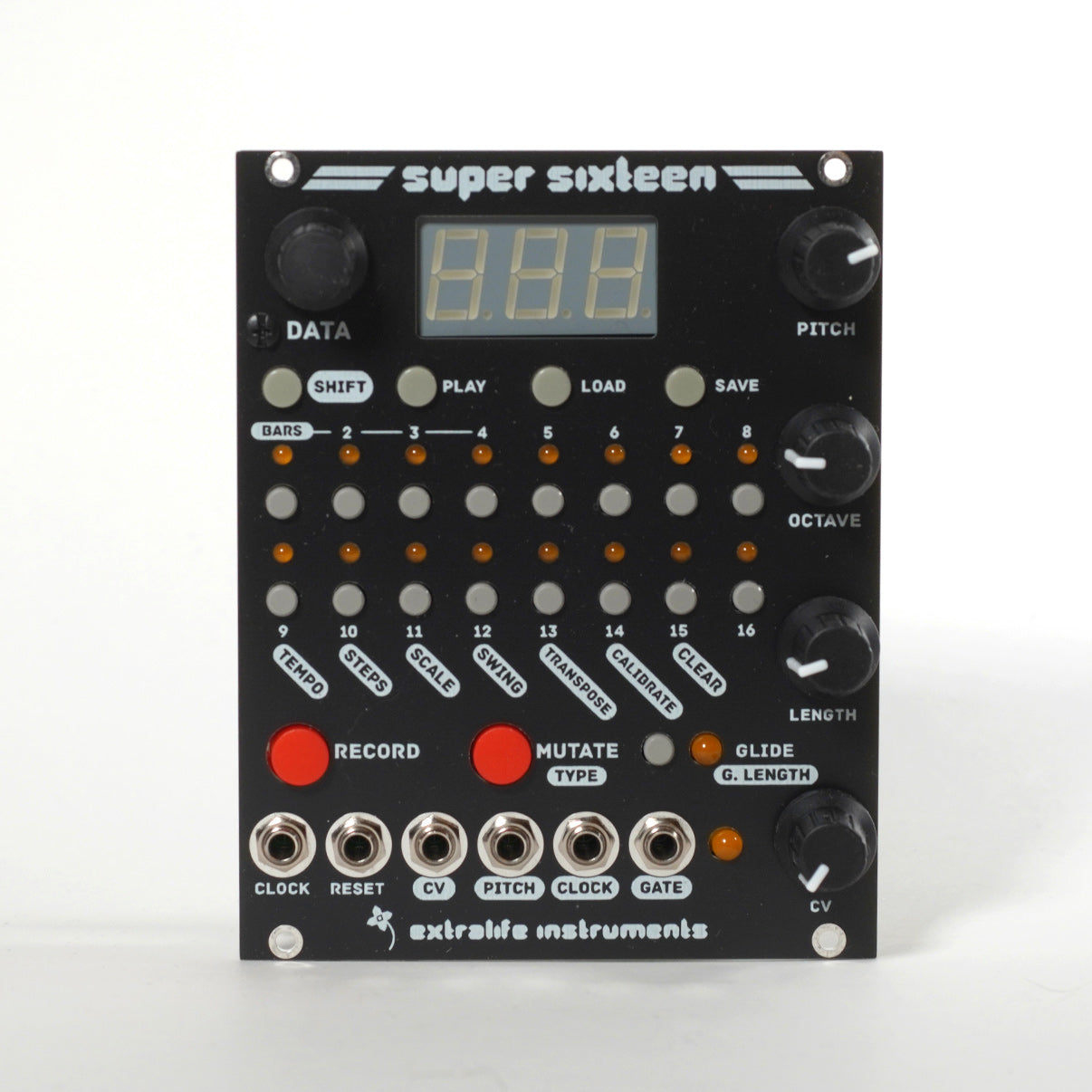

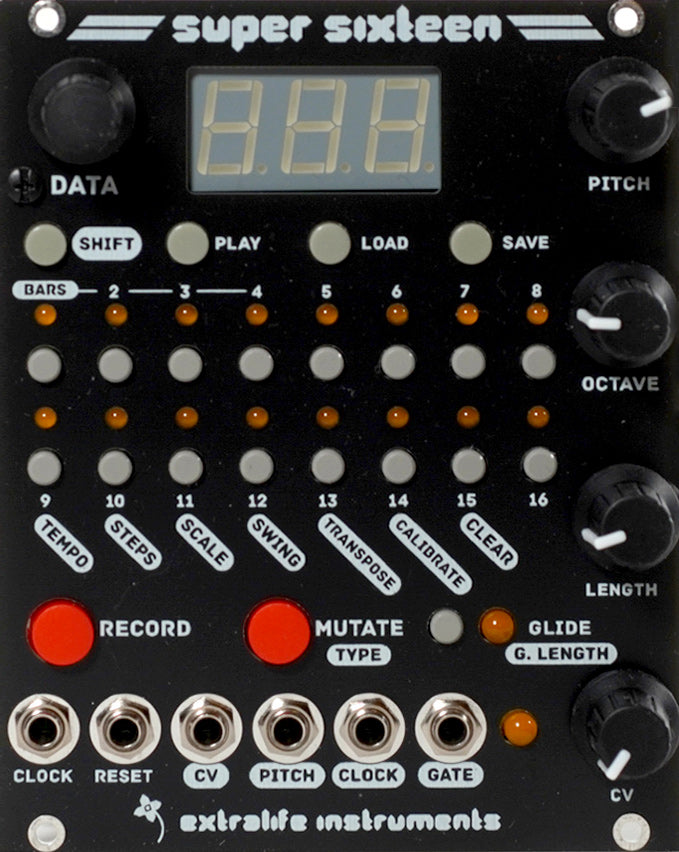

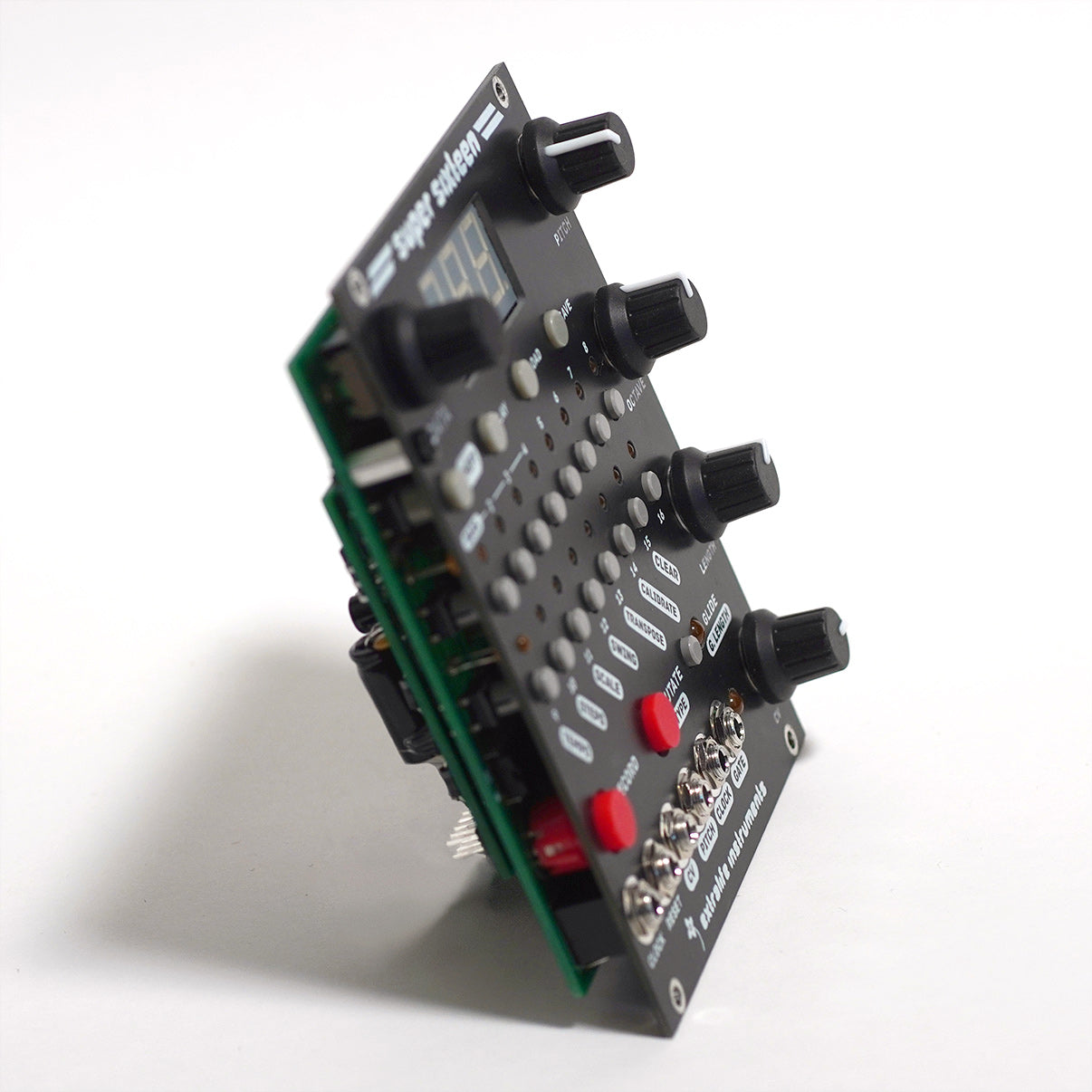

Extralife Instruments Super Sixteen
A new kind of control voltage sequencer
The most powerful eurorack CV sequencer in 20 HP. No assembly required - just plug, play, and sequence! Super Sixteen is a 64-step control voltage sequencer with gate, pitch, linear CV, and clock outputs, and a unique 2-handed programming interface that makes programming melodies, rhythms, an basslines a joy.
- patch memory for 99 sequences
- up to 64 step sequence length
- selectable scales and swing timing
- intuitive motion recording
- per-step glide/portamento
- real-time rhythm and pitch effects like beat repeat, stutter roll, and randomization.
- code and hardware files are open-source for you to edit and experiment
Dimensions:
- Width 102mm / 20 HP (horizontal pitch)
- Height 128.5mm
- Rear Depth 38mm (behind panel)
- Front Depth 16mm
- Total Depth 55mm
Electrical characteristics:
- Max current draw: 90mA (+12v) / 5mA (-12v)
- Pitch output voltage: 0-8 volts
- CV output voltage: 0-8 volts
- Gate output voltage: 0-5 volts
- Clock output voltage: 0-5 volts
- Clock input voltage: 10v maximum
- Reset input voltage: 10v maximum
Documentation:
Tutorial Videos:
Basic sequencing and settings:
Advanced sequencing and FX modes:
Generative mutations and Song mode:
